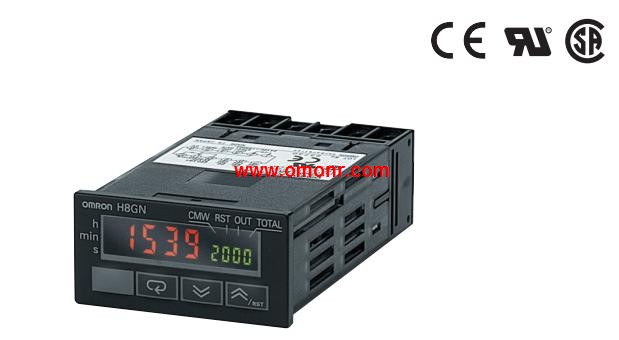

H8GN-AD | OMRON Preset Counter/Timer H8GN-AD
OMRON H8GN-AD Manual And Instructions
H8GN-AD datasheetPDF datasheet
H8GN-AD User's Manual
H8GN-AD Communications Manual
OMRON H8GN-AD Product information and technical parameters：
Brand: OMRON
Name: Preset Counter/Timer
Model: H8GN-AD
Supply voltage: 24 VDC.
Output: Contact output (SPDT).
Contact output (SPDT): No communications.
A DIN 48 × 24 Preset Counter.
Compact, Yet Equipped with.
Communication.
Only 48 × 24 × 83 mm (W × H × D),
Switch between 4-digit preset counter and 4-digit timer operation.
While using the preset counter, it is possible to switch the,
display to monitor the totalizing count value (8 digits).
Built-in prescaling for counter operation.
ON/OFF-duty adjustable flicker mode that can be used to per,
form cyclic control is available for timer operation.
SV can be changed using front panel keys to any of four values,
preset in SV-banks.
Water-proof structure to NEMA4X/IP66.
Conforms to UL, CSA, and IEC safety standards as well as CE Marking.
