>> H7AN-RW6DM | OMRON Digital Counter H7AN-RW6DM

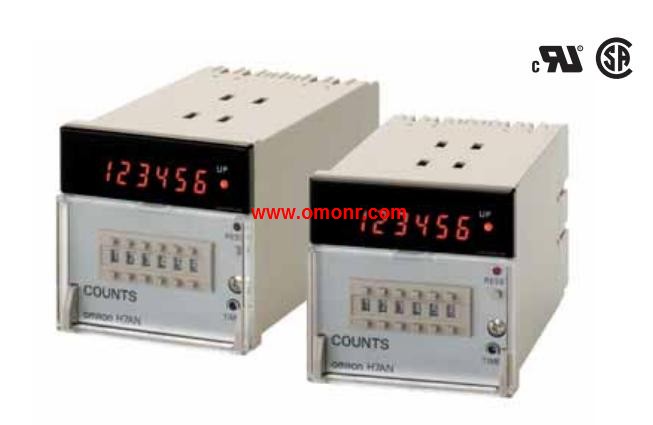

H7AN-RW6DM | OMRON Digital Counter H7AN-RW6DM
OMRON H7AN-RW6DM Manual And Instructions
H7AN-RW6DM datasheetPDF datasheet
H7AN-RW6DM User's Manual
OMRON H7AN-RW6DM Product information and technical parameters：
Brand: OMRON
Name: Digital Counter
Model: H7AN-RW6DM
Operating method: Incrementing, decrementing, and reversible,
(UP/DOWN A to F) (selectable with rotary DIP switch).
Mounting method: Flush mounting.
Operation modes: N, F, C, R, K, P, Q (selectable with rotary DIP switch).
Input signal method (Count and reset inputs): Contact and transistor input, voltage (H and L).
Control output: 1-stage counters: Contact (SPDT) and transistor,
output (H and L output switchable);
2-stage counters: Contact (SPST-NO) and transistor output,
(H and L output switchable).
Set value read: Continuous mode, Reset mode (selectable).
Memory backup: Yes/No (Selectable using DIP switch).
Display: Yes (8-mm high 7-segment LED, Up indicator).
Models: 6 digits; 2 stage.
A DIN 72 x 72 mm Best-selling Counter.
Easy setting with thumbwheel switches.
A draw-out construction enables maintenance without rewiring.
Models with 2-, 4-, 6-, or 8-digit displays are also available.
Total Counter models are also Available.
Complies with UL and CSA Marking.
