>> H5S-WFB2D | OMRON Digital Time Switch H5S-WFB2D

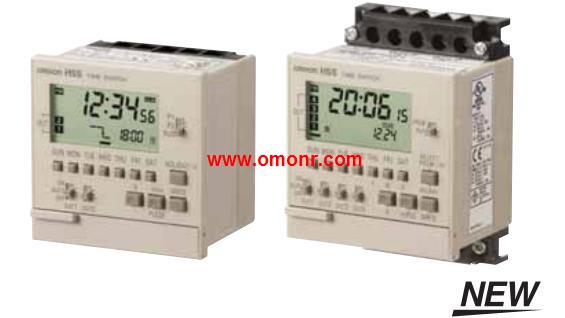

H5S-WFB2D | OMRON Digital Time Switch H5S-WFB2D
OMRON H5S-WFB2D Manual And Instructions
H5S-WFB2D datasheetPDF datasheet
H5S-WFB2D User's Manual
OMRON H5S-WFB2D Product information and technical parameters：
Brand: OMRON
Name: Digital Time Switch
Model: H5S-WFB2D
Control cycle: Weekly.
Number of outputs: 2 circuits.
Mounting method: Surface mounting/track mounting.
Supply voltage: 24 VDC.
Easier, More Convenient Time Switches, with,
New 4-circuit Output and Yearly Models in,
Addition to 2-circuit Weekly Models.
Independent Day Keys provide easier operation.
Temporary holiday setting function makes it easy to turn OFF,
output for holidays and non-operating days.
Settings can be made even with the Time Switch turned OFF.
Test mode enables easy program checking.
Complies with EMC Directives, UL/CSA, and other safety standards.
Includes summer time (DST) adjustment.
Yearly models also offer automatic switching to DST.
Set value can be changed both upward and downward for speedier setting.
Integrated temperature compensation circuit helps keep,
accurate time over a wide temperature range. (See note 1.)
Includes time counter and total counter functions with alarm,
indicator. (See note 2.)
Bank function allows program switching by an external input.
(See note 3.)
New 4-circuit output models with a compact, 72 × 72-mm DIN,
size added to the series.
...More relevant models >>>>
