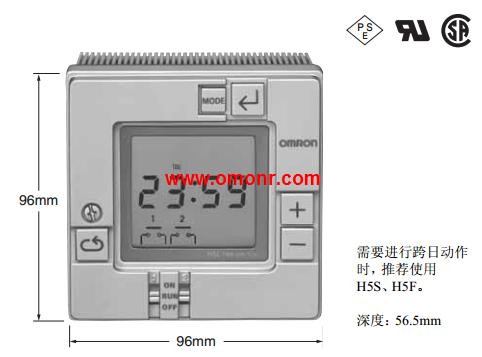

H5L-A | OMRON Daily Time Switch H5L-A
OMRON H5L-A Manual And Instructions
H5L-A datasheetPDF datasheet
H5L-A User's Manual
OMRON H5L-A Product information and technical parameters：
Brand: OMRON
Name: Daily Time Switch
Model: H5L-A
Wiring: Screw terminals.
Backup power supply function for memory protection:
Provided (approx. 10 years at 25°C).
No. of program steps: 24 (Each ON or OFF is considered to be one step.).
Weekly Control with a Large Time Display,
Easy Programming with Large Display and Interactive,
Functions.
Easy operation with five keys.
Up to 24 steps of ON/OFF operations can be set.
Power supply freely selectable from 100 to 240 VAC.
Memory protection during power failure for up to 10 years.
Certified for UL and CSA safety standards.
The same setting can be used for multiple-day operation and,
timer operation.
