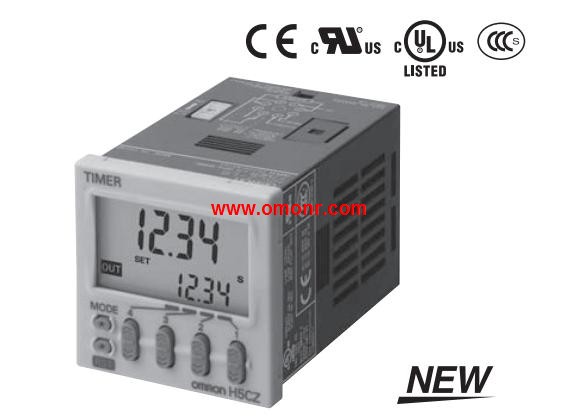

OMRON H5CZ Series Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5CZ Series
Easy to Use and Easy to Read.
Basic Features.
Character height of 10 mm for better readability.
Operation is simplified by the Up/Down Keys for each digit on 4-digit.
Safety and Reliability.
Power supply circuit and input circuits are isolated for safety and reliability.
Set value limit function prevents unexpected operation of output devices.
caused by setting mistakes.
Output counter function helps in managing the service life of the Timer or,
the load.
Other Features.
Models with instantaneous contact output.
Waterproof, dust-proof structure (UL508 Type 4X and IP66).
Key protection.
...More relevant models >>>>
H5CZ Series datasheetPDF datasheet
OMRON H5CZ Series Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5CZ Series
Easy to Use and Easy to Read.
Basic Features.
Character height of 10 mm for better readability.
Operation is simplified by the Up/Down Keys for each digit on 4-digit.
Safety and Reliability.
Power supply circuit and input circuits are isolated for safety and reliability.
Set value limit function prevents unexpected operation of output devices.
caused by setting mistakes.
Output counter function helps in managing the service life of the Timer or,
the load.
Other Features.
Models with instantaneous contact output.
Waterproof, dust-proof structure (UL508 Type 4X and IP66).
Key protection.
Type of input: AC voltage input.
Output type: transistor; -; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth OMRON H5CZ Series.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table H5CZ Series
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceNetInput type: DC current input OMRON H5CZ Series.
Output type: DeviceNet; -; DeviceNet.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) depth
Some models are not equipped with.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table OMRON H5CZ Series.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
This Compact Cam Positioner, Popular for Its.
Ease-of-use, Now Comes with Even Better Functions.
Compact 8-, 16-, and 32-output Models available that,
are 1/4-DIN size at 96 x 96 mm.
High-speed operation at 1,600 r/min and high-precision settings,
to 0.5° ensure widespread application.
Highly visible display with backlit negative transmissive LCD.
Advance angle compensation function to compensate for output delays.
Bank function for multi-product production (8 banks).
(H8PS-16@/-32@ models.).
Speed display and pulse output.
Approved standards: UL/CSA and EMC. Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
High speed pulse.
Measuring, increasing or decreeasing pulse meter H5CZ Series.
Action determine the color, can switch the green / Red 2 kinds of color display.
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
Cumulative pulse input is 50kHz, phase differrence pulse is 25kHz, increase or decrease of pulse is 30kHz H5CZ Series.
Supports no voltage contact input to 30Hz.
The count value can be converted to any value
Output type: transistor; -; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth OMRON H5CZ Series.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table H5CZ Series
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceNetInput type: DC current input OMRON H5CZ Series.
Output type: DeviceNet; -; DeviceNet.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC100 ~ 240V.
96 (W) * 48 (H * 95mm) depth
Some models are not equipped with.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table OMRON H5CZ Series.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
This Compact Cam Positioner, Popular for Its.
Ease-of-use, Now Comes with Even Better Functions.
Compact 8-, 16-, and 32-output Models available that,
are 1/4-DIN size at 96 x 96 mm.
High-speed operation at 1,600 r/min and high-precision settings,
to 0.5° ensure widespread application.
Highly visible display with backlit negative transmissive LCD.
Advance angle compensation function to compensate for output delays.
Bank function for multi-product production (8 banks).
(H8PS-16@/-32@ models.).
Speed display and pulse output.
Approved standards: UL/CSA and EMC. Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
No output: -.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
High speed pulse.
Measuring, increasing or decreeasing pulse meter H5CZ Series.
Action determine the color, can switch the green / Red 2 kinds of color display.
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
Cumulative pulse input is 50kHz, phase differrence pulse is 25kHz, increase or decrease of pulse is 30kHz H5CZ Series.
Supports no voltage contact input to 30Hz.
The count value can be converted to any value
...More relevant models >>>>
