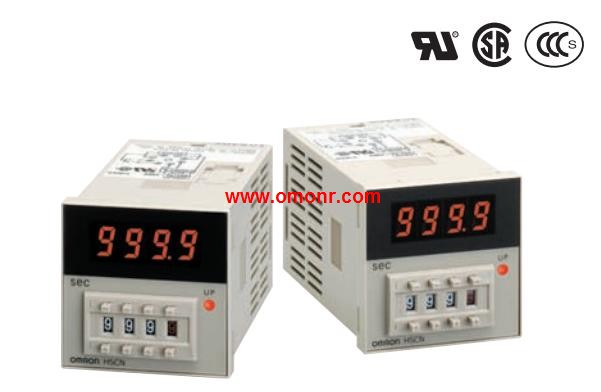

H5CN-YBN | OMRON Digital Timer H5CN-YBN
OMRON H5CN-YBN Manual And Instructions
H5CN-YBN datasheetPDF datasheet
H5CN-YBN INSTRUCTION MANUAL
OMRON H5CN-YBN Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5CN-YBN
Display type: DOWN display timer (decrements form the set time to 0).
Output type: Contact output (SPDT).
Pin type: 8-pin.
Memory backup: Not provided.
Supply voltage: 100 to 240 VAC, 12 to 48 VDC.
Rated time: 0.1 to 999.9 s.
Miniature DIN-sized (48 x 48 mm) Quartz.
Timer with Abundant Series Versions.
Series version cover a wide range of rated times; 9.999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min.
Selection of elapsed time indication, remaining time indication,
contact output, and transistor output types to suit requirements.
Power supply freely selectable within a range of 100 to,
240 VAC, as well as 12 to 48 VDC.
Certified for UL and CSA safety standards.
