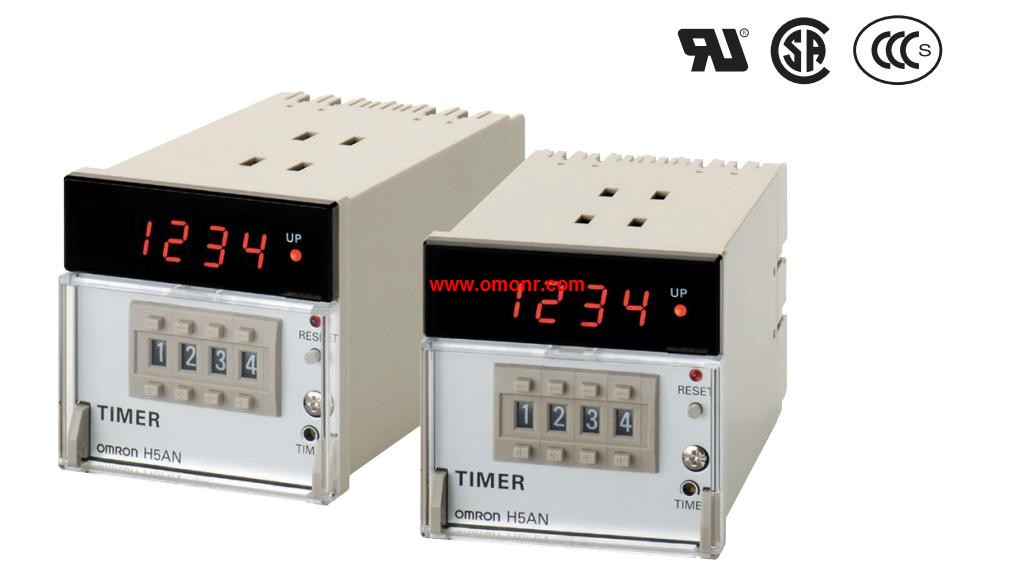

>> H5AN-4DM | OMRON Digital Timer H5AN-4DM
H5AN-4DM | OMRON Digital Timer H5AN-4DM
OMRON H5AN-4DM Manual And Instructions
H5AN-4DM datasheetPDF datasheet
H5AN-4DM INSTRUCTION MANUAL
OMRON H5AN-4DM Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5AN-4DM
Operation system: Time-limit operation, integrating operation.
Resetting system: Power-OFF resetting (excluding -M), external resetting,
manual resetting, automatic resetting.
No. of digits: 4 digits (switch-selectable):
0.01 to 99.99 s, 0.1 to 999.9 s, 1 to 9999 s, 0.1
to 999.9 min, 0.1 to 999.9 hrs, 1 to 9999 hrs,
1 s to 99 min 59 s, 1 min to 99 hrs 59 min.
Backup power supply function for memory protection: Can be,
enabled and disabled with a DIP switch.
DIN-sized (72 x 72 mm) Quartz Timer with,
Multiple Functions.
Wide time range from 1/100 seconds to 9999 hrs.
Built-in power supply incorporated in timer enables direct,
connection of sensors and other components.
Draw-out construction allows maintenance without,
disconnecting the wiring.
Power supply freely selectable within a range of 100 to 240 VAC;
a DC-operated version is also available.
Control outputs of both contact type and transistor type,
simultaneously available.
Seven operating modes (N, F, C, R, K, P, and Q) are available.
