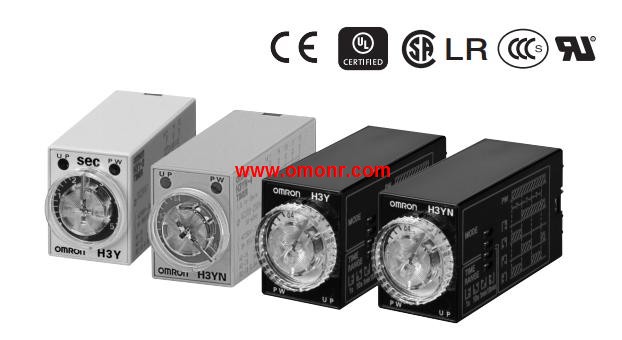

H3Y-4-B | OMRON Solid-state Timer H3Y-4-B
OMRON H3Y-4-B Manual And Instructions
H3Y-4-B datasheetPDF datasheet
OMRON H3Y-4-B Product information and technical parameters：
Brand: OMRON
Name: Solid-state Timer
Model: H3Y-4-B
Operation/resetting system: Time-limit operation/self-resetting.
Time-limit contact: 4PDT.
Time ranges: 0.04 s to 3 h.
Supply voltage: 100 to 120, 200 to 230 VAC (50/60 Hz); 12, 24, 48, 100 to 110 VDC.
Mounting: Surface/DIN-track mounting (with socket).
Miniature Timer Compatible with the MY.
Relay.
UL listed when used with a Push-In Plus Terminal Block Socket.
Conforms to CSA, CE Marking, CCC and LR.
Black design with power supply terminals on top and contact output,
terminals on bottom.
Large transparent time setting knob facilitates time setting.
A flat-blade and Phillips screwdriver can also be used for time setting.
Semi-multi power supply voltage.
