>> G70V-ZOM16P-1 | OMRON I/O Relay Terminal G70V-ZOM16P-1
G70V-ZOM16P-1 | OMRON I/O Relay Terminal G70V-ZOM16P-1
OMRON G70V-ZOM16P-1 Manual And Instructions
G70V-ZOM16P-1 datasheetPDF datasheet
OMRON G70V-ZOM16P-1 Product information and technical parameters：
Brand: OMRON
Name: I/O Relay Terminal
Model: G70V-ZOM16P-1
Applicable I/O Relay Terminal: G70V-SOC16P-1.
Type: Output.
Internal I/O circuit common: PNP (- common).
Rated voltage: 24 VDC.
I/O Relay Terminals with 16 Points and,
Push-In Plus terminal blocks to,
Downsize Control Panels and Save Labor.

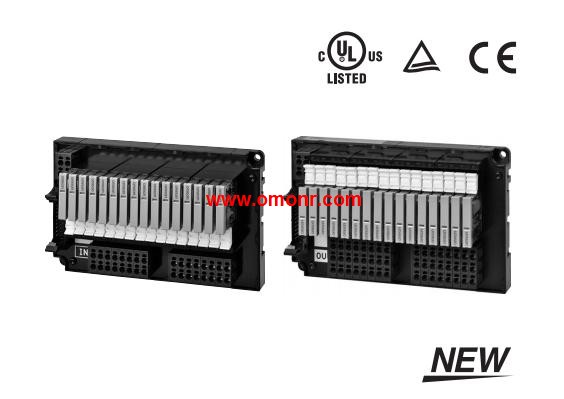

I/O Relay Terminals with 16 points to mount G2RV Slim I/O Relays.
Push-In Plus terminal blocks are used to save wiring work in,
comparison with traditional screw terminals. (Wiring time is,
reduced by 60%* in comparison with traditional screw terminals.).
Work is reduced ever further with one-step cable connection to the PLC.
Diode provided for coil surge absorption.
Operation indicators for immediate recognition of I/O signal status.
Accepts G3RV Slim I/O SSRs.
DIN Track or screw mounting.
