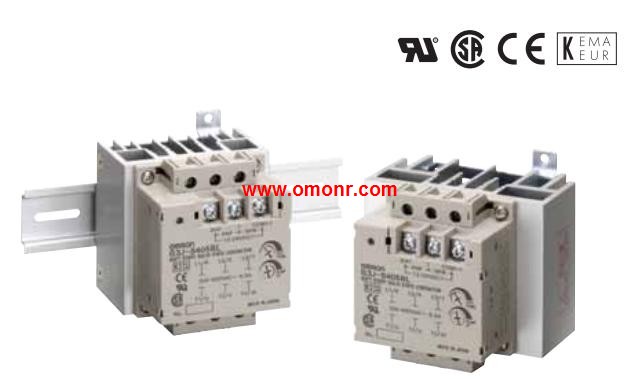

OMRON G3J-S Series Product information and technical parameters:
Brand: OMRON
Name: Soft-start Solid State Contactors
Model: G3J-S Series
Soft-start Function Starts Motors Smoothly,
and Economically.
The soft-start function allows a smooth startup of motors by,
holding down the starting current, and functions like an inverter.
Comply with UL, CSA, IEC, and JEM requirements.
Mount with screws or to DIN tracks.
Compact monoblock construction (W: 80 × H: 100 × D: 100 mm).
with a heat sink.
Snubber circuit and varistor are built-in.
Operation indicator.

Isolation: Phototriac Coupler.
Zero cross function: Yes.
Indicator: Yes(Yellow).
Applicable output load (See note 1.): 90 A at 24 to 240 VAC(See note 2.).
Rated input voltage: 5 to 24 VDC.
Wide Lineup of General-purpose Solid State.
Relays with Applicable Loads of 5 to 90 A.
AC Output Relays with 75-A and 90-A output currents have been,
added to the G3NA Series OMRON G3J-S Series.
All models feature the same compact dimensions to provide a,
uniform mounting pitch G3J-S Series
Built-in varistor effectively absorbs external surges.
(except G3NA-D210B).
Operation indicator enables monitoring operation.
Protective cover for greater safety.
Standard models certified by UL and CSA and -UTU models by TÜV.
(except G3NA-410B, G3NA-420B, and G3NA-440B(-2)) OMRON G3J-S Series. Number of elements: 3.
Insulation method: Phototriac.
Rated supply voltage: 12 to 24 VDC.
Input method: No-voltage input (open and short circuit input).
Applicable motor: 0.75 kW (2.4 A), 380 to 400 VAC.
Soft-start Function Starts Motors Smoothly,
and Economically.
The soft-start function allows a smooth startup of motors by,
holding down the starting current, and functions like an inverter OMRON G3J-S Series.
Comply with UL, CSA, IEC, and JEM requirements.
Mount with screws or to DIN tracks.
Compact monoblock construction (W: 80 × H: 100 × D: 100 mm).
with a heat sink.
Snubber circuit and varistor are built-in.
Operation indicator. Type: Microload.
Latching lever (Test switch): No.
Rated input voltage: DC, 11.
Applicable model: G2RV-SR700/500-AP DC12V.
Global standard size, low profile slim.
I/O relay with width 6.2 mm.
Realized about 25% lower profile than conventional.
products, contributing to further miniaturization of the control panel.
Realized opening and closing ability with one pole 6 A slim shape.
Micro load products for one pole 50 mA using Au-plated G3J-S Series.
contacts for small load switching also available.
Since G2RV is a transparent case, confirming the state of,
the contact with the naked eye is possible, and easy to,
confirm abnormality on-site (installed locatiion) G3J-S Series.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay uses plug-in terminals that are difficult to,
bend when exchanging.
