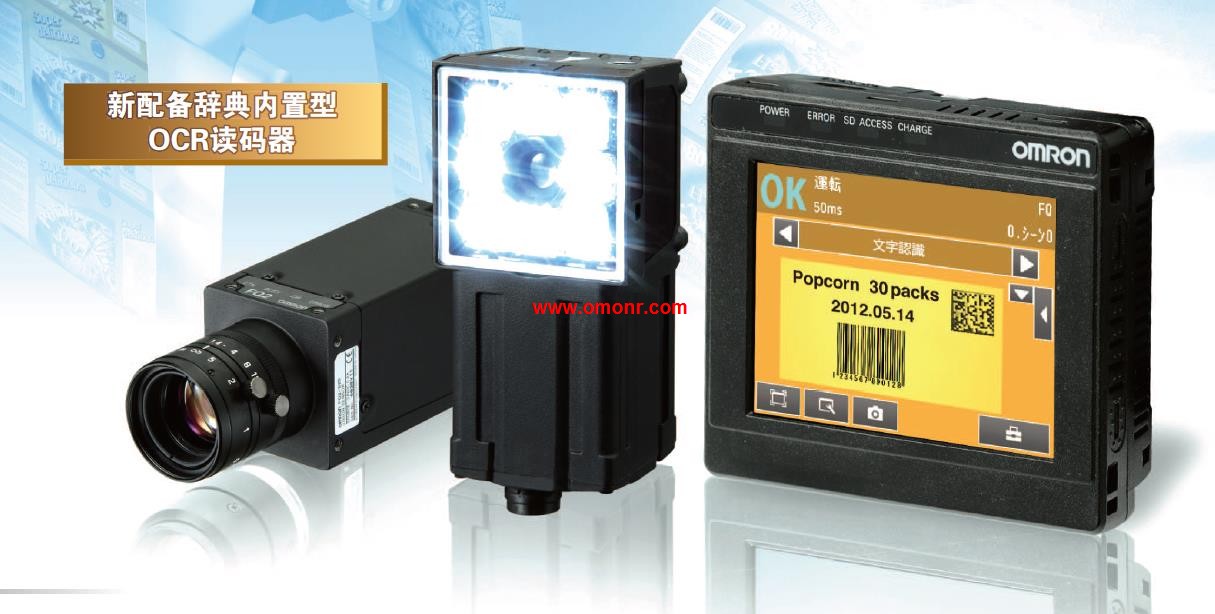

OMRON FQ2-S30100F-08M Product information and technical parameters：
Brand: OMRON
Name: Smart Camera
Model: FQ2-S30100F-08M
Field of view: Wide View (Long-distance).
Number of pixels: 760,000 pixels.
Monochrome: NPN.
Field of view/Installation distance: Refer to figure 7 on p.20.
Inspection capabilities, camera options,
and communication options -- this powerful,
heavy weight has it all.
This Vision Sensor provides all of the best-selling,
features found in high-end models without the,
need as in vision system for a separate controller.
This new Smart Camera was designed to attract,
potential customers to try the FQ2 Series.
