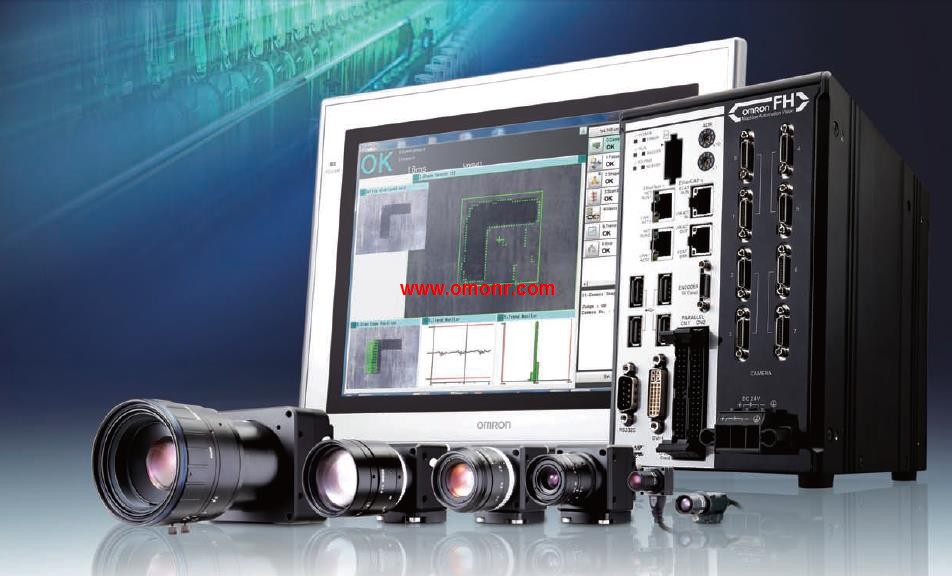

OMRON FH-3050 Product information and technical parameters：
Brand: OMRON
Name: Vision System
Model: FH-3050
Item: Box-type controllers.
CPU: High-speed Controllers (4 core).
No. of cameras: 2.
Output: NPN/PNP.
Like or even more than the human eye.
A complete line-up of cameras for various applications.
Powerful controllers for fast and precise,
inspection and measurement.
Software for easy setting of various measurements.
