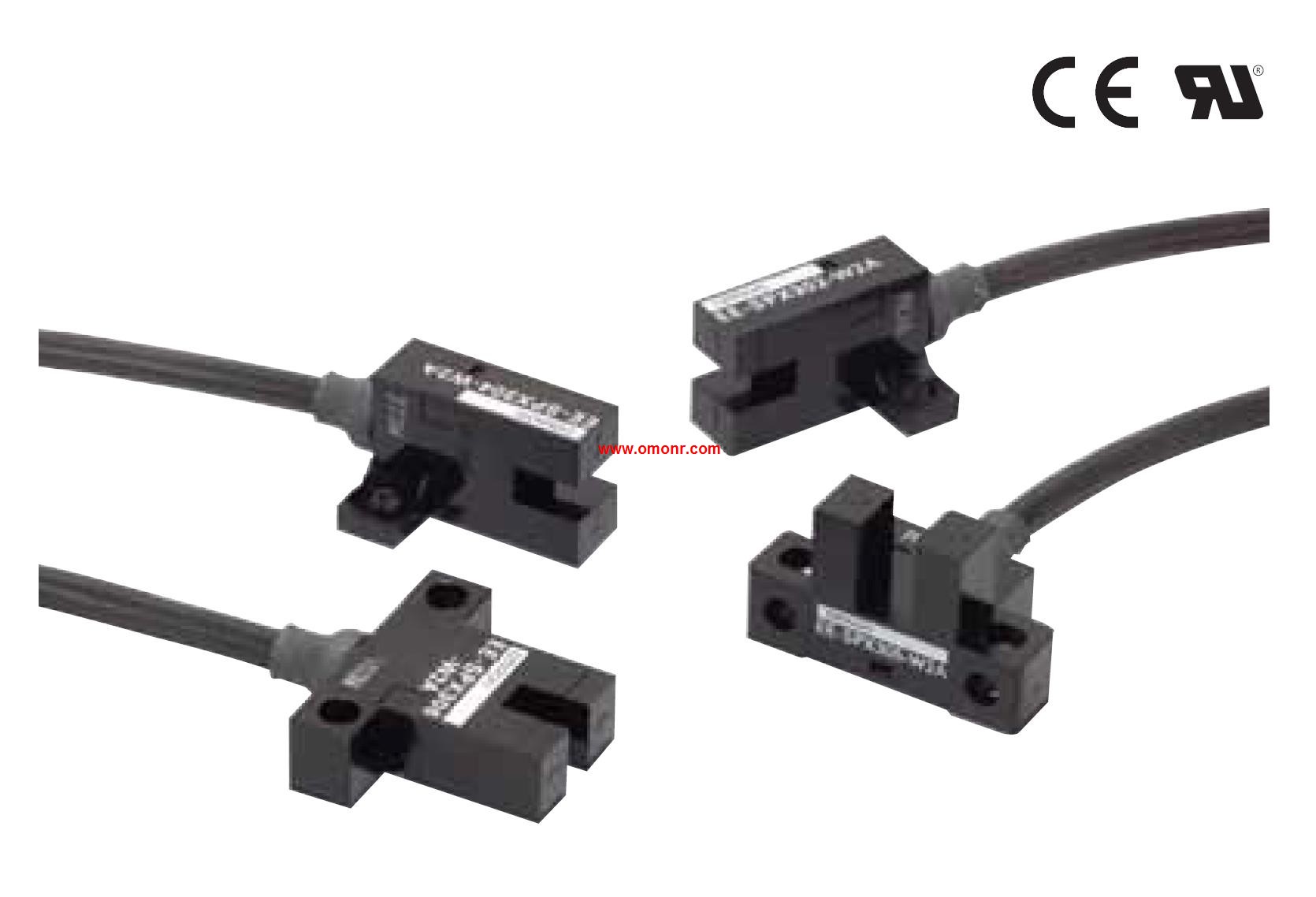

>> EE-SPW421 | OMRON Pre-wired Photomicrosensor with Amplifier and Cable EE-SPW421
EE-SPW421 | OMRON Pre-wired Photomicrosensor with Amplifier and Cable EE-SPW421
OMRON EE-SPW421 Manual And Instructions
EE-SPW421 datasheetPDF datasheet
EE-SPW421 INSTRUCTION sheet
OMRON EE-SPW421 Product information and technical parameters：
Brand: OMRON
Name: Pre-wired Photomicrosensor with Amplifier and Cable
Model: EE-SPW421
Sensing method: Through-beam type.
Sensing distance: 300 mm.
Output type: NPN output.
Output configuration: Light-ON.
Cable length: 2 m.
Cable length from emitter to amplifier: 0.5 m.
Compact, Thin-profile.
Photomicrosensor with special amplifier.
Slim amplifier (50 × 7.5 × 12 mm) can be handled like a cable.
Provided with two operation indicators, enabling monitoring from the,
amplifier housing and sensor head.
Simple wiring with a 3-conductor cable.
Wide operating voltage range: 12 to 24 VDC.
