>> E6B2-CWZ1X | OMRON Incremental 40-mm-dia. Rotary Encoder E6B2-CWZ1X
E6B2-CWZ1X | OMRON Incremental 40-mm-dia. Rotary Encoder E6B2-CWZ1X
OMRON E6B2-CWZ1X Manual And Instructions
E6B2-CWZ1X datasheetPDF datasheet
E6B2-CWZ1X INSTRUCTION sheet
OMRON E6B2-CWZ1X Product information and technical parameters：
Brand: OMRON

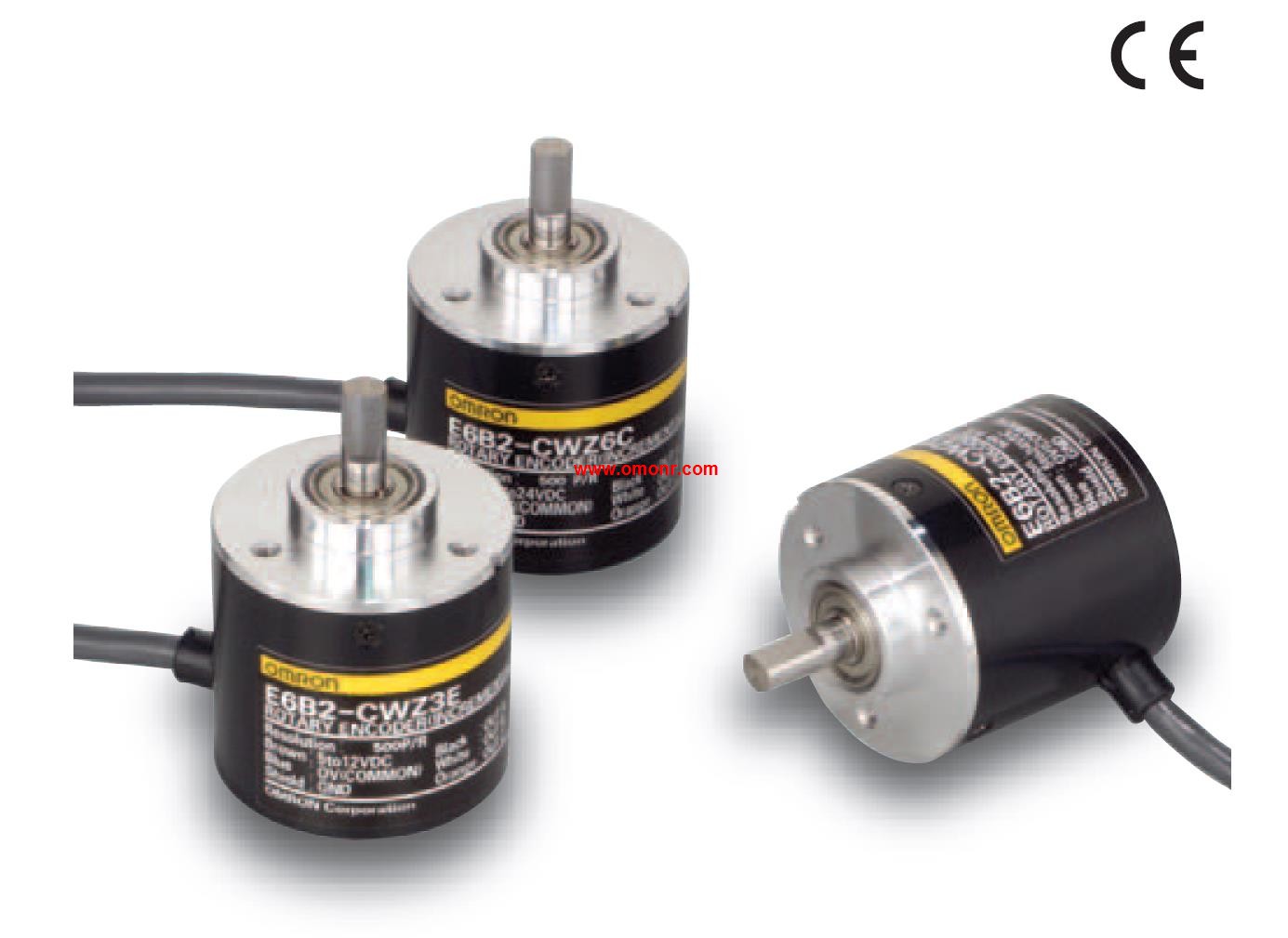

Name: Incremental 40-mm-dia. Rotary Encoder
Model: E6B2-CWZ1X
Power supply voltage: 5 VDC.
Output configuration: Line-driver output.
Resolution (pulses/rotation): 10, 20, 30, 40, 50, 60, 100,
200, 300, 360, 400, 500, 600; 1,000, 1,024; 1,200, 1,500, 1,800, 2,000.
General-purpose Encoder with.
External Diameter of 40 mm.
Incremental model.
External diameter of 40 mm.
Resolution of up to 2,000 ppr.
