>> E5CN-Q2TD | OMRON Foundation type temperature controller E5CN-Q2TD
E5CN-Q2TD | OMRON Foundation type temperature controller E5CN-Q2TD
OMRON E5CN-Q2TD Manual And Instructions
E5CN-Q2TD datasheetPDF datasheet
E5CN-Q2TD datasheetPDF datasheet
E5CN-Q2TD datasheetPDF datasheet

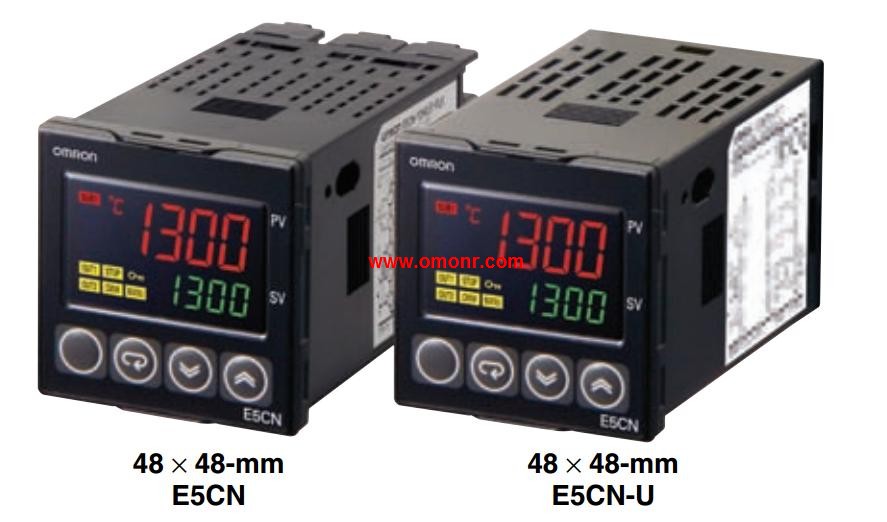

OMRON E5CN-Q2TD Product information and technical parameters：
Brand: OMRON
Name: Foundation type temperature controller
Model: E5CN-Q2TD
The main body: terminal type, temperature input type.
Type: control output 1 point type (power AC/DC24V).
Shell color: black.
Control output: voltage output (SSR driver).
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
A power supply for the detection of /ES1B fault, SSR fault and heater over current for heater use.
Event input points: -.
Transfer output: -.
Communication: -.
48mm general thermostat has been upgraded & function / performance upgrade.
Indicates that the accuracy is increased and the preventive maintenance function is increased,
Further performance improvement.
E5CN-U (insert type) add analog input and current output type.
Add PV/SV status display function, convenient to check the state of the thermostat (automatic / manual, RUN/STOP, alarm),
Interactive display PV/SV.
Increase the number of control output ON/OFF counting function, can prevent the maintenance of temperature controller internal relay.
