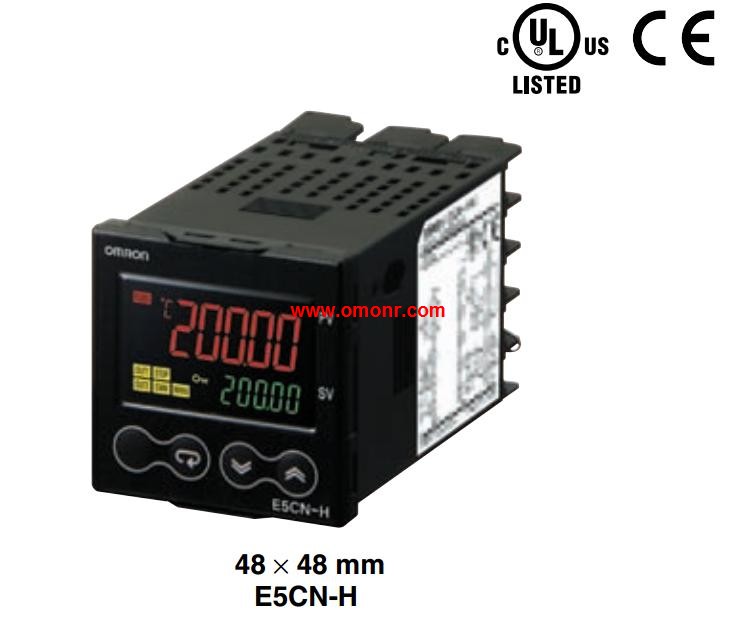

E5CN-HQ2BFD | OMRON High performance temperature controller E5CN-HQ2BFD
OMRON E5CN-HQ2BFD Manual And Instructions
E5CN-HQ2BFD datasheetPDF datasheet
E5CN-HQ2BFD Basic Type
E5CN-HQ2BFD Basic TypeUser's Manual
E5CN-HQ2BFD User's Manual
E5CN-HQ2BFD User's Manual
E5CN-HQ2BFD Communications FunctionsUser's Manual
E5CN-HQ2BFD USER'S MANUAL
E5CN-HQ2BFD Communications FunctionsUser's Manual
E5CN-HQ2BFD USER'S MANUAL
E5CN-HQ2BFD INSTRUCTION Manual
OMRON E5CN-HQ2BFD Product information and technical parameters：
Brand: OMRON
Name: High performance temperature controller
Model: E5CN-HQ2BFD
Size: 48 x 48mm.
Body: terminal type.
Type: control output 1 point type (power AC/DC24V).
Shell color: black.
Control output: voltage output (SSR driver).
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
The failure detection function of the heater with the broken line and SSR: -.
Event entry point: 2.
Transfer output: transfer output (special terminal).
Communication: -.
General thermostat new high performance (high resolution, high speed, high precision input) type products.
Support simple operation, preventive maintenance, using a new type of liquid crystal, visual angle, contrast to enhance.
High resolution 5 bit display / can display 0.01 degrees C (to achieve a small size of 48 x 48mm).
High speed sampling period 60ms.
All models (thermocouple /Pt/ analog input switching), 1 machines to support a variety of sensors.
Add PV/SV state display function, to see the state of the thermostat.
(automatic / manual, RUN/STOP, alarm), interactive display PV/SV.
By supporting software (CX-ThermoVer.4.0) to carry out a simple function (AND/OR logic and delay),
Be able to execute flexible contact output
Increase the control output ON/OFF number counting function, can predict the temperature controller internal relay fault
