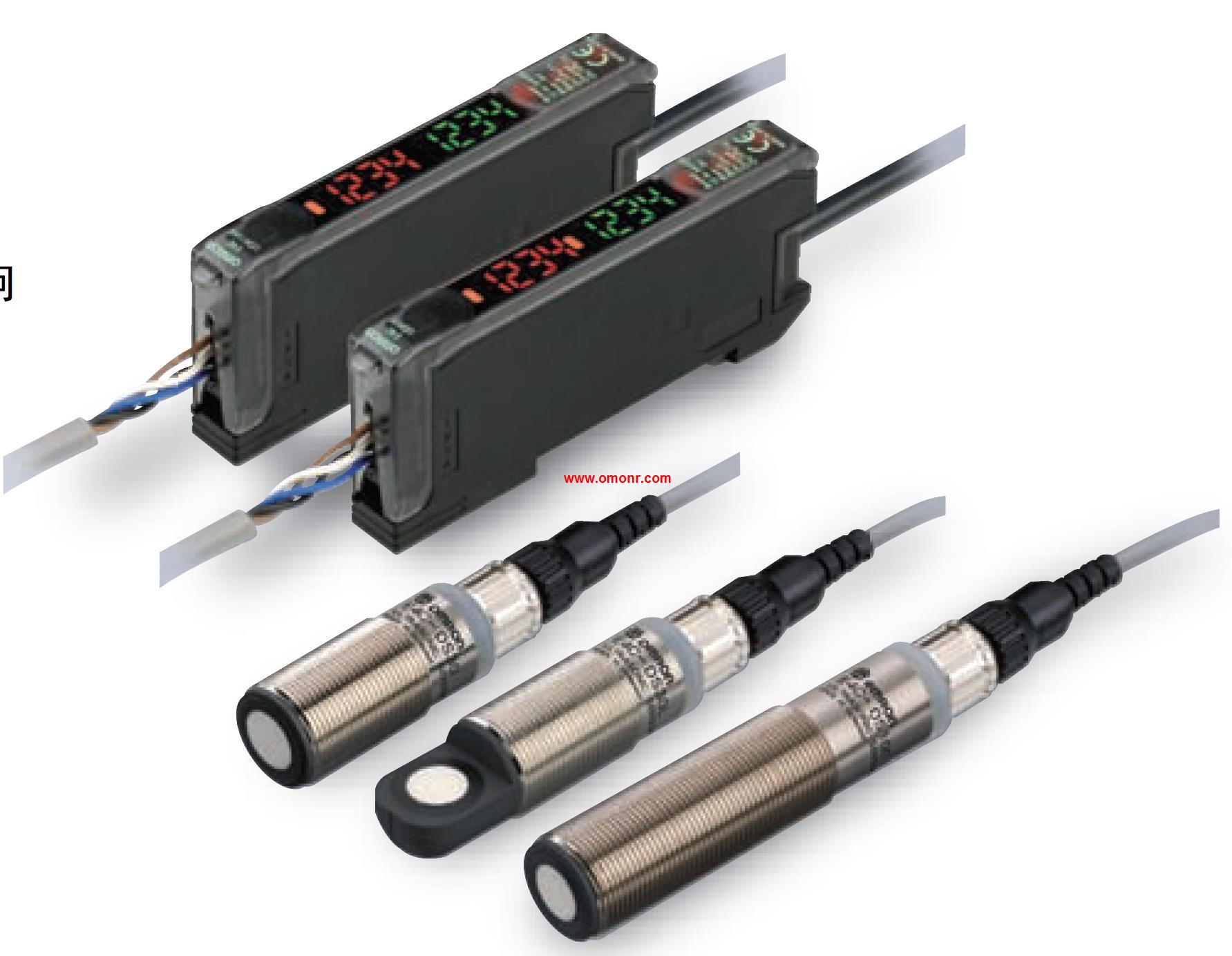

>> E4C-DS80L | OMRON Digital Amplifier Ultrasonic Sensor E4C-DS80L
E4C-DS80L | OMRON Digital Amplifier Ultrasonic Sensor E4C-DS80L
OMRON E4C-DS80L Manual And Instructions
E4C-DS80L datasheetPDF datasheet
E4C-DS80L INSTRUCTION sheet
OMRON E4C-DS80L Product information and technical parameters：
Brand: OMRON
Name: Digital Amplifier Ultrasonic Sensor
Model: E4C-DS80L
Shape: M18.
Model: Side view.
Measurement range: 85 to 735 mm.
Compact, Cylindrical Reflective.
Ultrasonic Sensor with Easy Setting.
Stable operation for a variety of objects regardless of color,
transparency, or material (metallic or non-metallic).
Compact M18-sized cylindrical Head.
Product lineup includes Side-view Heads.
Check the sensing object distance and sensing position,
(i.e., threshold) on the digital display.
Easily make settings for workpiece presence/absence,
and elimination of background influence by using teaching.
Amplifiers include models with analog outputs.
