>> E3X-DAB6-S | OMRON Digital Fiber Amplifier Unit E3X-DAB6-S

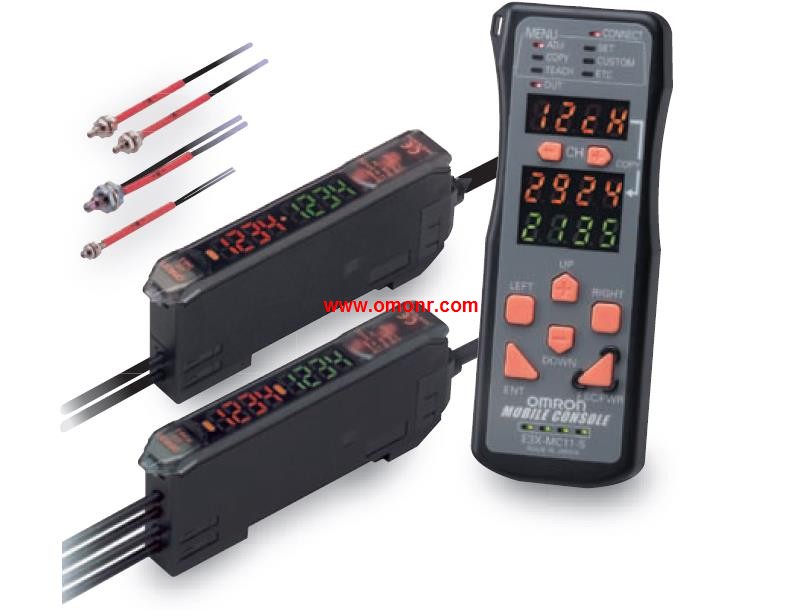

E3X-DAB6-S | OMRON Digital Fiber Amplifier Unit E3X-DAB6-S
OMRON E3X-DAB6-S Manual And Instructions
E3X-DAB6-S datasheetPDF datasheet
E3X-DAB6-S INSTRUCTION sheet
OMRON E3X-DAB6-S Product information and technical parameters：
Brand: OMRON
Name: Digital Fiber Amplifier Unit
Model: E3X-DAB6-S
Item: Mark-detecting models(multiple color light sources); Blue LED.
Functions: Timer, Response speed change.
Model: NPN output.
Advanced Fiber Amplifier Units.
Features a Power Tuning function that optimizes light,
reception at the press of a button.
APC circuits to suppress LED aging degradation used with,
4-element LEDs.
2-channel models achieve the thinnest* profile in the industry,
at only 5 mm per channel.
2-channel models also offer AND/OR control output.
The E3X-MDA0 with two channels supports an EtherCAT Sensor.
Communications Unit or CompoNet Sensor Communications Unit.
