>> E3S-LS3NT | OMRON PCB Sensors E3S-LS3NT
E3S-LS3NT | OMRON PCB Sensors E3S-LS3NT
OMRON E3S-LS3NT Manual And Instructions
E3S-LS3NT datasheetPDF datasheet
E3S-LS3NT INSTRUCTION sheet

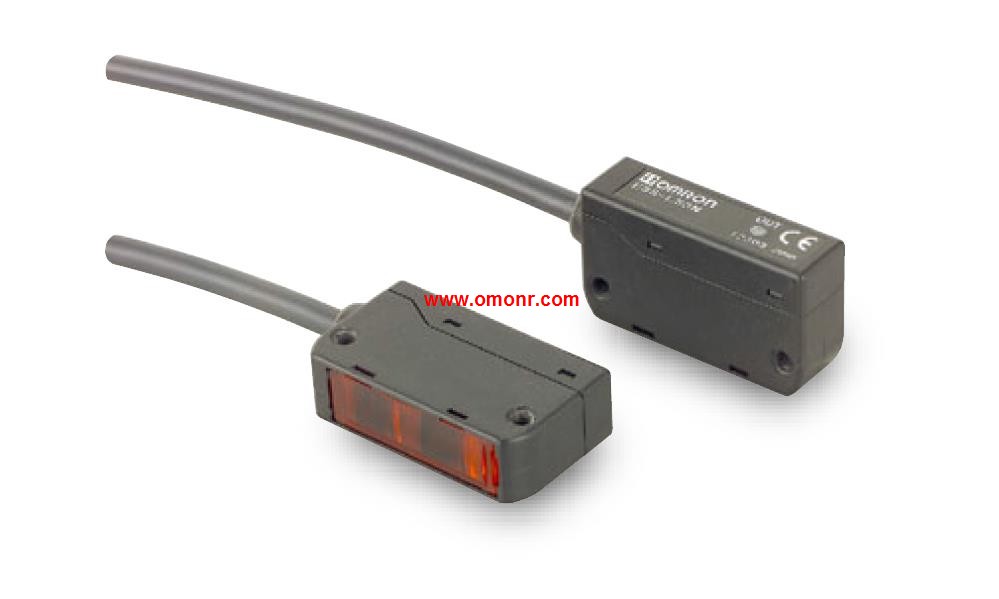

OMRON E3S-LS3NT Product information and technical parameters：
Brand: OMRON
Name: PCB Sensors
Model: E3S-LS3NT
Sensing method: Convergent reflective.
Connection method: Pre-wired (2 m).
Sensing distance : 20 to 35 mm .
function Timer: With .
Model: NPN output.
Reliable Detection Unaffected by PCB.
Holes or Notches.
High-limit E3S-LS3@ is suitable for incorporation in devices.
Wide-range E3S-LS3@W is ideal for detecting tall components,
mounted on boards.
Timer function models available.
...More relevant models >>>>
