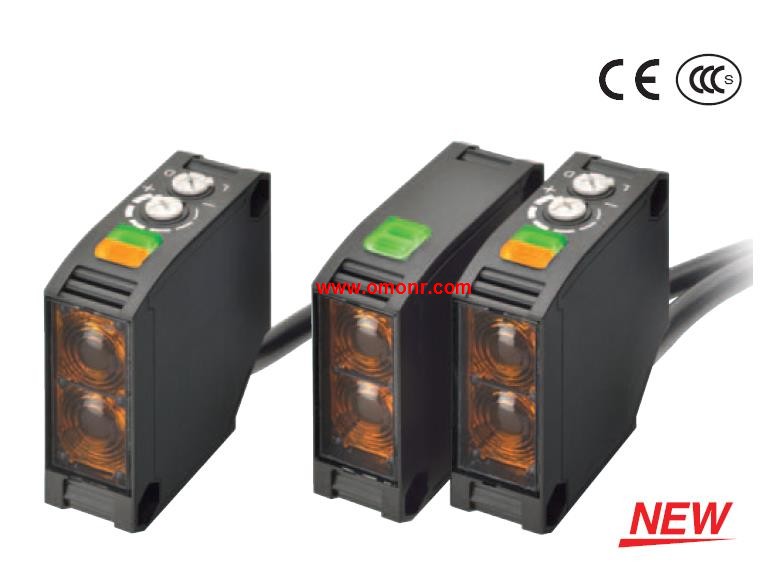

E3JK-TR14 2M | OMRON Built-in Power Supply Photoelectric Sensor E3JK-TR14 2M
OMRON E3JK-TR14 2M Manual And Instructions
E3JK-TR14 2M datasheetPDF datasheet
OMRON E3JK-TR14 2M Product information and technical parameters：
Brand: OMRON
Name: Built-in Power Supply Photoelectric Sensor
Model: E3JK-TR14 2M
Power supply voltage: AC/DC power supply selectable type.
Sensing method: Through-beam (Emitter + Receiver).
Sensing distance: 5 m.
Output configu ration: Relay.
Long-distance Photoelectric Sensor.
That Supports AC/DC Power Supplies.
Long sensing distance that is approximately 8,
times that of our conventional model (for the,
Through-beam and Diffuse-reflective models).
(Through-beam: 40 m, Retro-reflective: 7 m, and,
Diffuse-reflective: 2.5 m.) .
Improved visibility:
A red LED that makes the spot visible.
Large indicators that can be seen even from a,
distance.
Improved operability.
(Enlarged sensitivity adjuster and operation selector)
Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).
(Additional types added to the DC type lineup.)
Models with infrared LEDs are also available.
