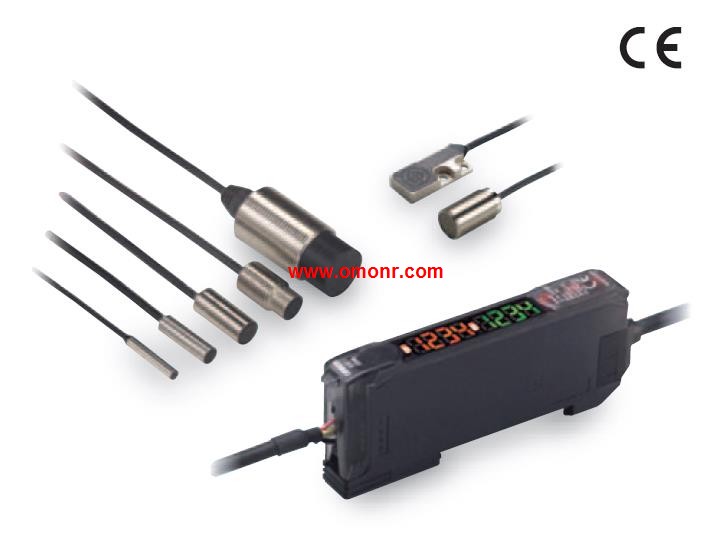

E2C-ED02-F | OMRON High Precision Positioning Inductive Proximity Sensor E2C-ED02-F

OMRON E2C-ED02-F Manual And Instructions
E2C-ED02-F datasheetPDF datasheet

OMRON E2C-ED02-F Product information and technical parameters:
Brand: OMRON
Name: High Precision Positioning Inductive Proximity Sensor
Model: E2C-ED02-F
Type: Shielded.
Appearance: Cylindrical, 8 dia. × 22 mm.
Sensing distance: 2 mm.
Repeat accuracy: 2 μm.
Cable specification: Free cutting.
Proximity Sensor with Separate.
Amplifier Enables Easily Making High.
precision Sensitivity Settings.
Wide variety of Sensor Heads to select according to the,
application. Flexible cables are used between Preamplifiers,
and Amplifier Units of the Sensor Heads.
High resistance to changes in ambient temperature.
Temperature characteristics of 0.08%/°C (for 5.4-dia. models).
Make simple and reliable detection settings with micron,
level precision using the teaching function.
Check the sensing excess gain level on the digital display.
Support for high-precision positioning and screening with,
fine positioning to maximize variations.
The E2C-EDA0 supports an EtherCAT Sensor,
Communications Unit or CompoNet Sensor,
Communications Unit.

Appearance: Shielded, M12.
Sensing distance: 4 mm.
Model: Output configuration: NPN NC.
Long-distance Proximity Sensor.
Long-distance detection at up to 30 mm enables secure mounting,
with reduced problems due to workpiece collisions.
No polarity for easy wiring with DC 2-wire models.
Cable protector provided as a standard feature OMRON E2C-ED02-F. Power supply voltage: AC/DC power supply selectable type E2C-ED02-F
Sensing method: Through-beam (Emitter + Receiver).
Sensing distance: 5 m.
Output configu ration: Relay.
Long-distance Photoelectric Sensor.
That Supports AC/DC Power Supplies.
Long sensing distance that is approximately 8,
times that of our conventional model (for the,
Through-beam and Diffuse-reflective models) OMRON E2C-ED02-F.
(Through-beam: 40 m, Retro-reflective: 7 m, and,
Diffuse-reflective: 2.5 m.) .
Improved visibility:
A red LED that makes the spot visible.
Large indicators that can be seen even from a,
distance.
Improved operability.
(Enlarged sensitivity adjuster and operation selector)
Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).
(Additional types added to the DC type lineup OMRON E2C-ED02-F. )
Models with infrared LEDs are also available. Field of view: Wide View (Short-distance).
Number of pixels: 760,000 pixels.
Monochrome: NPN.
Field of view/Installation distance: Refer to figure 8 on p.20.
Inspection capabilities, camera options,
and communication options -- this powerful,
heavy weight has it all.
This Vision Sensor provides all of the best-selling,
features found in high-end models without the,
need as in vision system for a separate controller.
This new Smart Camera was designed to attract,
potential customers to try the FQ2 Series. Size: M30, Non-shielded.
Sensing distance: 20.0 mm.
Connection: M12 connector.
Body material: Brass.
Thread length (overall length): 44 (58)(See note.).
Output confiiguration: PNP E2C-ED02-F.
Operation mode NC.
Safe Mounting with Greater.
Sensing Distance.
Ensures a sensing distance approximately 1.5 to 2,
times larger than that of any conventional OMRON Sensor.
Problems such as the collision of workpiecees are eliminated E2C-ED02-F.
Full range of standard sizes (M8, M12, M18 and,
M30; both long and short barrels).
Modular construction simplifies customization.
