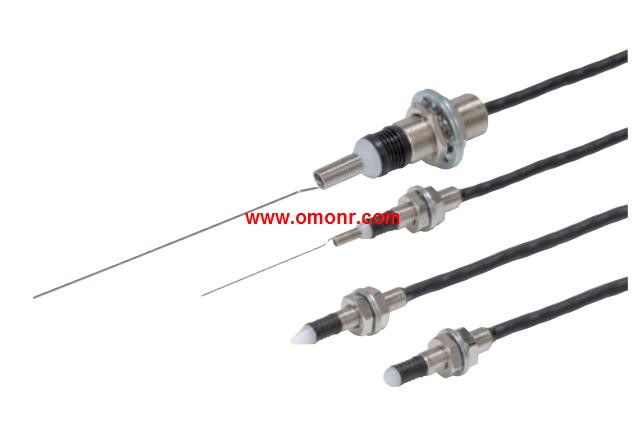

>> D5B-8023 | OMRON Mechanical Touch Switch D5B-8023
D5B-8023 | OMRON Mechanical Touch Switch D5B-8023
OMRON D5B-8023 Manual And Instructions
D5B-8023 datasheetPDF datasheet
OMRON D5B-8023 Product information and technical parameters：
Brand: OMRON
Name: Mechanical Touch Switch
Model: D5B-8023
Type: M8.
Actuator: Cone-shaped actuator.
Cable length: 3 m.
Detects Objects in Multiple Directions,
with High Sensitivity, Ideal for Robotics,
Slow-action switching mechanism used.
Gold-plated contact with coil spring capable of switching,
micro current/voltage load while providing high contact reliability.
Inputs directly to microcomputers and programmable controllers.
Three sizes (M10, M8, and M5) and three types of compact actuators.
Easy panel mounting.
