>> D4N-9272 | OMRON Safety Limit Switch D4N-9272

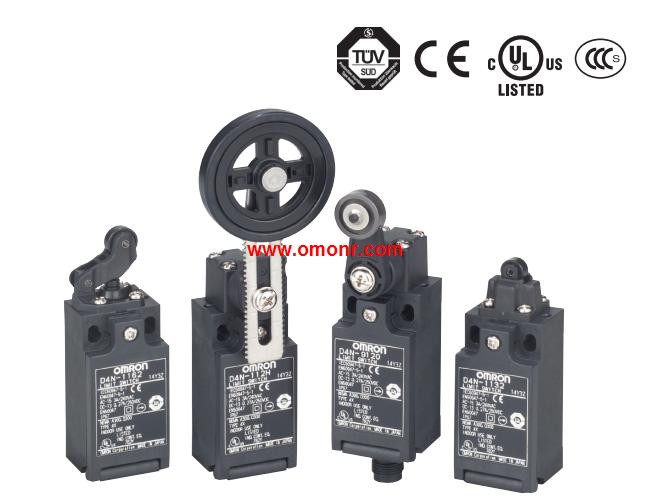

D4N-9272 | OMRON Safety Limit Switch D4N-9272
OMRON D4N-9272 Manual And Instructions
D4N-9272 datasheetPDF datasheet
D4N-9272 INSTRUCTION sheet
OMRON D4N-9272 Product information and technical parameters：
Brand: OMRON
Name: Safety Limit Switch
Model: D4N-9272
Actuator: One-way roller arm lever (vertical).
Conduit size: 1-conduit; M12 connector.
Built-in switch mechanism: 2NC(Snap-action).
Popular Safety Limit Switches.
Providing a Full Lineup Conforming to,
International Standards.
Lineup includes models with 1NC/1NO, 2NC, 2NC/1NO and,
3NC contact forms.
(Slow-action models with MBB contacts are available.)
M12-connector models are also available, saving on labor and,
simplifying replacement.
Standardized gold-clad contacts provide high contact reliability.
Can be used with both standard loads and microloads.
Conforms to EN115-1, EN81-1, and EN81-2 (slow-action models only).
Certified standards: UL, EN (TÜV), and CCC.
...More relevant models >>>>
