>> D4MC-3030 | OMRON Enclosed Switch D4MC-3030

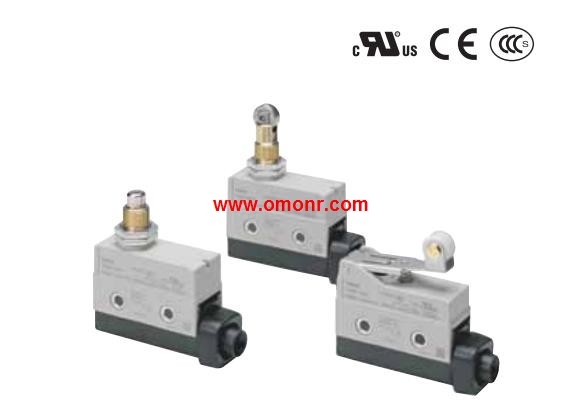

D4MC-3030 | OMRON Enclosed Switch D4MC-3030
OMRON D4MC-3030 Manual And Instructions
D4MC-3030 datasheetPDF datasheet
OMRON D4MC-3030 Product information and technical parameters：
Brand: OMRON
Name: Enclosed Switch
Model: D4MC-3030
Actuator: One-way action short hinge roller lever.
Economical, High Utility Enclosed Switch.
Enclosed Switches with Built-in Basic Switches for High,
Repeatability and Durability of 10 Million Operations Minimum.
Panel mount versions have the same operating position as,
Z Basic Switch.
Suitable for applications demanding higher mechanical,
strength, dustproof and drip-proof properties than those,
on basic switches.
Resin molded terminal versions are available.
Approved by UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.).
