>> D4JL-4PFA-C6 | OMRON Guard Lock Safety-door Switch/Slide key D4JL-4PFA-C6

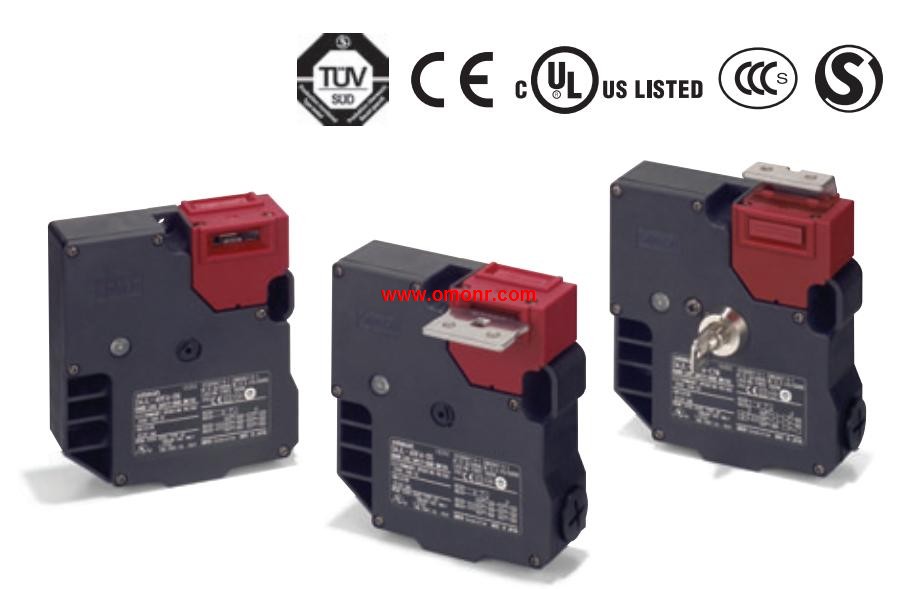

D4JL-4PFA-C6 | OMRON Guard Lock Safety-door Switch/Slide key D4JL-4PFA-C6
OMRON D4JL-4PFA-C6 Manual And Instructions
D4JL-4PFA-C6 datasheetPDF datasheet
D4JL-4PFA-C6 INSTRUCTION sheet
OMRON D4JL-4PFA-C6 Product information and technical parameters：
Brand: OMRON
Name: Guard Lock Safety-door Switch/Slide key
Model: D4JL-4PFA-C6
Release key type: Special release key.
Indicator: Green.
Lock and release types: Mechanical lock Solenoid release.
Contact configuration(door open/closed detection switch,
and lock monitor switch contacts): 2NC/1NO+3NC.
Conduit opening: M20.
Holding Force of 3,000 N.
Two safety circuits and two monitor contacts provide an,
array of monitoring patterns.
Standard gold-clad contacts enable use with ordinary loads,
and microloads.
Models with trapped keys prevent workers from being locked,
in hazardous work areas.
Models with rear release buttons allow people to unlock the,
Switch and escape if they are locked into hazardous areas.
IP67 degree of protection.
