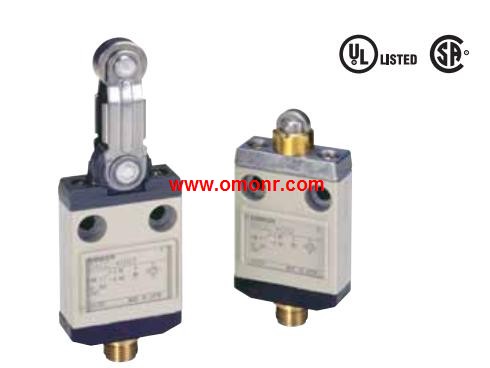

>> D4CC-1060 | OMRON Miniature Limit Switch D4CC-1060
D4CC-1060 | OMRON Miniature Limit Switch D4CC-1060
OMRON D4CC-1060 Manual And Instructions
D4CC-1060 datasheetPDF datasheet
OMRON D4CC-1060 Product information and technical parameters：
Brand: OMRON
Name: Miniature Limit Switch
Model: D4CC-1060
Ratings: 1 A at 125 VAC.
LED indicator: Without indicator.
Actuator: Center roller lever.
Many Models Including Roller Lever.
Switches are Only 16-mm Thick with Connector.
New center roller lever models that enable ganged mounting.
of up to 6 Switches.
Cable connectors for easy Switch replacement.
Triple-seal construction to provide IEC IP67 degree of protection.
Operation indicators available for easy monitoring,
(standard indicator is lit when Switch is not operating).
Approved by UL and CSA.
(Ask your OMRON representative for Information on approved models.)
