>> D4BL-1DRG | OMRON Guard Lock Safety-door Switch D4BL-1DRG

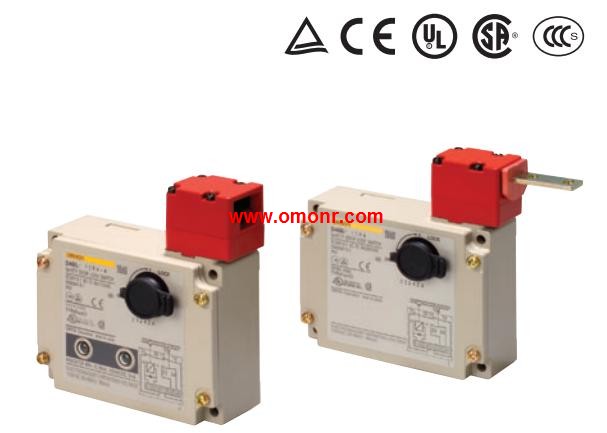

D4BL-1DRG | OMRON Guard Lock Safety-door Switch D4BL-1DRG
OMRON D4BL-1DRG Manual And Instructions
D4BL-1DRG datasheetPDF datasheet
D4BL-1DRG INSTRUCTION sheet
OMRON D4BL-1DRG Product information and technical parameters：
Brand: OMRON
Name: Guard Lock Safety-door Switch
Model: D4BL-1DRG
Lock method: Solenoid lock.
Conduit size: PG13.5.
Voltage for solenoid: 24 VDC.
Without indicator 2NC+ 1NC (Slow-action).
Release Protective Cover Locks Using.
Controller Signals or Pushbutton.
Switches after the Cutting Tool Stops.
Moving Due to Inertia.
A mechanical lock is applied automatically when the Operation.
Key is inserted. A high level of safety is achieved using a,
mechanism where the lock is only released when voltage is,
applied to the solenoid.
Conforms to EN (TÜV) standards corresponding to the CE marking.
Certified by UL, CSA and CCC standards.
The Switch contact is opened by a direct opening mechanism,
(NC contacts only) when the protective cover is opened.
Direct opening mechanism that is EN-certified is indicated by,
on the Switch.
Auxiliary release key ensures easy maintenance and unlocks the,
door in the case of a power failure.
Tough aluminum die-cast body incorporating a switch box with,
degree of protection satisfying IP67, UL, and CSA TYPE6P, 13.
Equipped with a horizontal and vertical conduit opening.
Models incorporating easy-to-see indicators for monitoring and,
those using an adjustable Operation Key for a swinging door are available.
The mounting direction of the head can be changed,
to allow the Operation Key to be inserted from four directions.
