OMRON D2SW-3L1M Product information and technical parameters：
Brand: OMRON

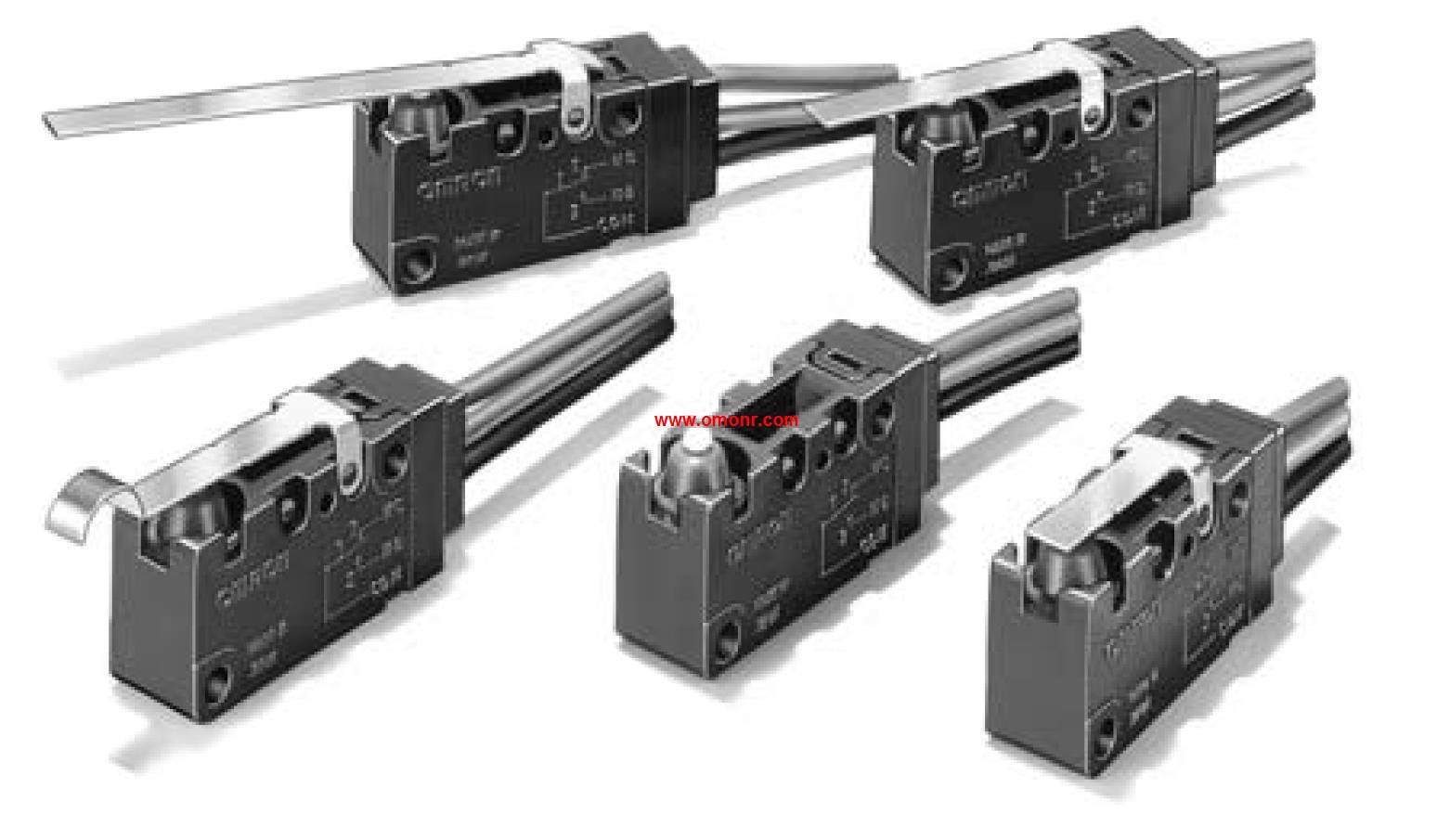

Name: Sealed Subminiature Basic Switch
Model: D2SW-3L1M
Ratings: 3 A.
Actuator: Hinge lever.
Terminals: Molded lead wire terminals (300 mm).
Contact form: SPDT.
Sealed Subminiature Basic.
Switch Conforming to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing,
making this switch ideal for places subject to,
water spray or excessive dust.
Ideal for automobiles, automatic vending,
machines, refrigerators, ice-making equipment,
bath equipment, hot-water supply systems, air,
conditioners, and industrial equipments, which,
require high environmental resistance.
Models available with UL, CSA, and VDE safety,
standard compliance.

Appearance: Square/Projection type A22-C.
Output: SPST-NO + SPST-NO.
Operation: Alternate operation (self-holding).
Illumination color: R (red); Y (yellow); G (green);
W (white); A (blue); B (black).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit OMRON D2SW-3L1M.
Increase wiring efficiency with three-row mounting of Switch Blocks D2SW-3L1M
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Appearance: Square/Projection type LED lighting,
(without Voltage Reduction Unit) A22L-C OMRON D2SW-3L1M.
Output: SPST-NO.
Lighting: LED.
Operating voltage: 24 VAC/VDC.
Operation: Momentary operation (self-resetting).
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit.
Increase wiring efficiency with three-row mounting of Switch Blocks OMRON D2SW-3L1M.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Output: DPDT.
Lighting: LED (with built-in reduced-voltage lighting function).
Operating voltage: 100/110 VAC/VDC.
Pushbutton colorsymbol: R: red, Y: yellow; PY: pure yellow
G: green, A: blue; W: white; PW: pure white.
Item: Momentary operation (Self-resetting).
Separate Construction with.
Cylindrical 16-dia. Body.
Miniature design of 28.5 mm, the smallest class in the industry.
Detachable Switch.
The same contacts can be used for both standard loads and microloads.
Easy-to-wire terminal arrangement.
Certified for EN 60947-5-1. Contact type: Standard load (250 VAC, 2 A; 125 VDC 0.4 A).
Operation: Momentary operation (Self-resettinng) D2SW-3L1M.
Output: SPDT.
Lighting: LED, 24 VDC.
Operation Unit color symbol: Enter the desired color symbol for the,
Pushbutton in @@. R (Red); Y (Yellow); G (Green); A (Blue); W (White).
Pushbutton Switch Series with.
Square 40-mm Body.
Combines miniature design with distinct but soft sense of operation D2SW-3L1M.
Easy panel mounting from the front and simple lamp replacement.
without tools.
