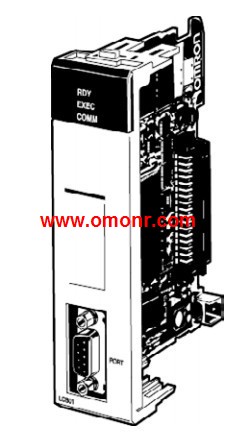

OMRON CS1W-LCB05 Product information and technical parameters：
Brand: OMRON
Name: DeviceNet Unit
Model: CS1W-LCB05
Unit name: Loop Control Boards.
Specifications: No. of function blocks:
500 blocks max.
Standards: UC1, N, CE.
The open nature of the PLCs is joined,
by integrating hardware, software,
and networking to meet your needs.
Increasing amounts of information,
standardization, and open standards,
form the basis for achieving hardware,
and networking capabilities for process control.
A wide range of software that can be easily,
used by design, development, and maintenance,
personnel makes operating and maintaining,
the system far easier.
...More relevant models >>>>
