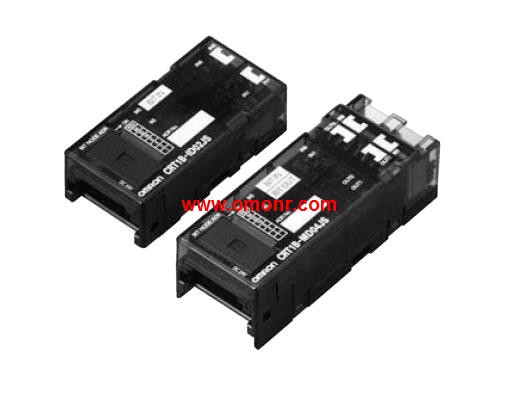

OMRON CRT1B-ID02S-1 Product information and technical parameters：
Brand: OMRON
Name: Bit Slave Units with e-CON Connectors
Model: CRT1B-ID02S-1
Name: Bit Slave Units with e-CON Connectors.
Specifications: Inputs; 2 inputs; PNP.
Simple and Intelligent Bit Slaves,
with Industry-standard e-CON connectors.
Slave Units capable of 2-point bit-level distribution.
The I/O power supply is supplied from the communications,
power in the previously connected flat cable, and has a,
short-circuit detection function for protection.
Industry-standard e-CON connectors.
Short-circuit protection safeguards the network,
from I/O short circuits.
Simple communications connections,
with flat cable and connectors.
Bit-level distribution to support,
essentially any application.
