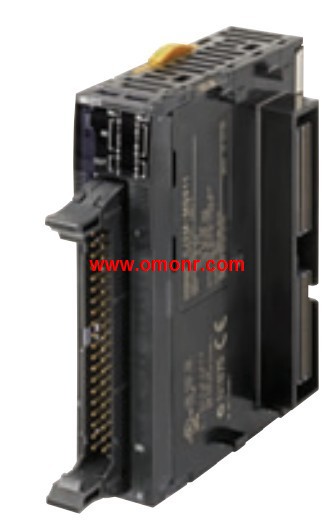

OMRON CJ2M-MD211 Product information and technical parameters：
Brand: OMRON
Name: Programmable Controllers
Model: CJ2M-MD211
Product name: Pulse I/O Module.
Specifications: Sinking outputs, MIL connector,
10 inputs (including four interrupt/quickresponse ,
inputs and two high-speed counter inputs)6 outputs ,
(including two pulse outputs and two PWM outputs).
Current consumption (A): 5V, 0.08; 24V,--.
Standards: UC1, N, L,CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU.
...More relevant models >>>>
