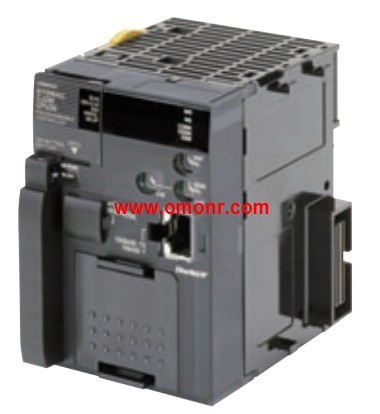

CJ2M-CPU31 | OMRON Programmable Controllers CJ2M-CPU31

CJ2M-CPU31 Introduce | CJ2M-CPU31 Catalog / Manual / Instructions / Software download

OMRON CJ2M-CPU31 Manual And Instructions
CJ2M-CPU31 datasheetPDF datasheet
CJ2M-CPU31 OPERATION MANUAL
CJ2M-CPU31 OPERATION MANUAL
CJ2M-CPU31 PROGRAMMING MANUAL
CJ2M-CPU31 INSTRUCTIONS REFERENCE MANUAL
CJ2M-CPU31 Communications CommandsREFERENCE MANUAL
CJ2M-CPU31 INSTRUCTIONS REFERENCE MANUAL
CJ2M-CPU31 SoftwareUSER'S MANUAL
CJ2M-CPU31 HardwareUSER'S MANUAL
CJ2M-CPU31 Safety Precautions

OMRON CJ2M-CPU31 Product information and technical parameters：
Brand: OMRON
Name: Programmable Controllers
Model: CJ2M-CPU31
Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
5K steps;Data memorycapacity, 64K words,
(DM: 32K words, EM: 32K words ×1 bank);
LD nstruction execution time, 0. 04 μs;
EtherNet/IP function: YES;
Option board slot: YES.
Current consumption (A): 5V, 0. 7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU.

Unit type: CJ1 Basic I/O Units.
Product name: Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 64 outputs;
Maximum switching capacity, 24VDC, 0.3A;
Commons, 16 points, 1 common;
External connection, Fujitsu connector.
No. of words allocated: 4 words.
Current consumption: 5V, 0 OMRON CJ2M-CPU31. 17A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications CJ2M-CPU31
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput. Product name: Transistor Output Units OMRON CJ2M-CPU31.
Specifications: Output type, Sourcing;
I/O points, 8outputs;
Maximum switching capacity, 24VDC,
2AShort-circuit protection;
Commons, 4 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.11A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications OMRON CJ2M-CPU31.
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput. Unit type: CJ1 Basic I/O Units.
Product name: AC Input Units.
Specifications: I/O points, 16 inputs;
Input voltage and current: 100 to 120 VAC, 7 mA(100 V, 50 Hz);
Commons, 16 points, 1 common; External connection,
Removable Terminal Block; No. of words allocated, 1 word.
Current consumption: 5V, 0 CJ2M-CPU31. 09A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications.
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memoory in the CPU Unit CJ2M-CPU31.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput.

...More relevant models >>>>
