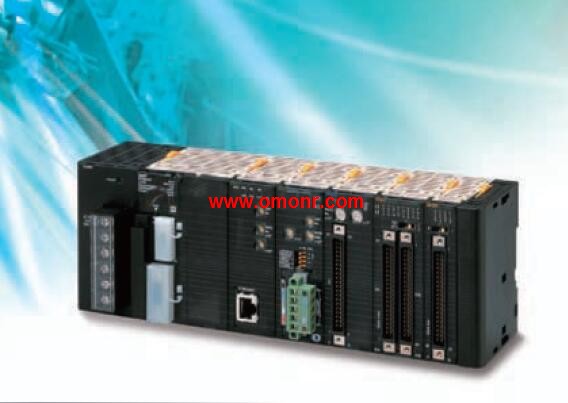

CJ1W-OD203 | OMRON Output Units CJ1W-OD203

Unit type: CJ1 Basic I/O Units.
Product name: DC Input/Transistor Output Units.
Specifications: Output type, Sourcing;
I/O points, 16 inputs, 16 outputs;
Input voltage,Input current, 24VDC, 7mA,
24VDC, 0.5A Short-circuit protection;
Commons, 16 points, 1 common;
External connection, MIL connector OMRON CJ1W-OD203.
No. of words allocated: 4 words.
Current consumption: 5V, 0.13A; 24V, -- CJ1W-OD203
Standards: UC1, N, L, CE.
A Wide Range of Basic Mixed,
I/O Units for Different Applications,
and Wiring Methods.
One Mixed I/O Unit has connectors for,
both inputs and outputs.
Use Mixed I/O Units to easily ,
build space-saving systems. Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max OMRON CJ1W-OD203. );Programcapacity,
60K steps;Data memorycapacity, 160K words,
(DM: 32K words, EM: 32K words ×4 banks);
LD nstruction execution time, 0.04 μs;
EtherNet/IP function: YES;
Option board slot: YES.
Current consumption (A): 5V, 0.7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation OMRON CJ1W-OD203.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU. Unit type: CJ1 Basic I/O Units.
name: B7A Interface Units.
Specifications: I/O points, 64 outputs;
External connection, Removable terminal block.
No. of words allocated: 4 words.
Current consumption: 5V, 0.07A; 24V, --.
Standards: UC1, CE.
It transmits 16 points of I/O signals per,
word with a pair of cables.
Easy and minimized wiring effort,
The B7A Interface Unit and B7A Link Terminal,
can be used in the same way as a standard,
Basic I/O Unit and I/O Terminal without,
any need to worry about communications.
This characteristic reduces the wiring,
when using more than one relatively remote,
sensor or actuator.
Type: CJ1 Special I/O Unit.
Connected ID System: V680 Series; 1 Head.
Exxternal power supply: -- CJ1W-OD203.
No. of unit numbers used: 1 unit number.
Current consumption: 5V, 0.26A;
24V, 0.13A; External, --.
Communication Unit Dedicated for RFID V680,
Allowing Direct Connection to OMRON PLC CJ/
CS/NJ-series.
Commmunication unit for connecting RFID V680-series,
which can be used around the world, directly to PLC CJ1W-OD203.
Allows batch transfer of data up to 32 kbytes.
