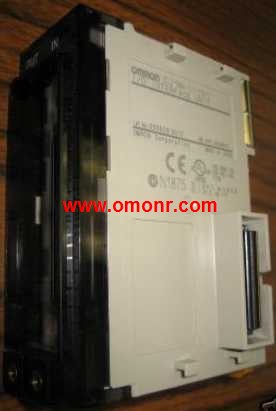

CJ1W-II101 | OMRON I/O Control Unit / I/O Interface Unit CJ1W-II101

Unit type: CJ1 Basic I/O Units.
Product name: Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 16 outputs;
Maximum switching capacity, 12 to 24VDC, 0.5A;
Commons, 16 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0 OMRON CJ1W-II101. 10A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications CJ1W-II101
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput. Unit classification: CJ1 CPU Bus Unit OMRON CJ1W-II101.
Product name: EtherNet/IP Unit.
Specifications:Communications cable,
Shielded twisted-pair STP),
cable Categories: 100 Ω at 5,5e;
Communications functions, Tag Data Link,
Functions, Message Communications Functions;
Units per CPU Unit, 8 max.
No. of unit numbers allocated: 1.
Current consumption: 5V system, 0.41A;
24V system, --.
Standards: UC1, N, L, CE OMRON CJ1W-II101.
Introducing the New EtherNet/IP Unit.
More Than 180,000 Words of Tag,
Data Link Capacity!
EtherNet/IP is an industrial multivendor,
network that uses Ethernet.
Managed by the ODVA (Open DeviceNet Vendors,
Association), it has open standards and is,
used with a wide range of industrial devices.
The EtherNet/IP Unit supports tag data links,
to enable sharing data between devices at,
Ethernet nodes and a message service for,
sending and receiving data when required.
The EtherNet/IP Unit supports the same,
FINS/UDP and FINS/TCP functionality,
as Ethernet Units.
Product name: CJ2H (Built-in EtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2,560 points/40 Units(3 Expansion Racks max.) ;
Program capacity, 250K steps; Data memory capacity,
512K words(DDM: 32K words, EM: 32K words × 15 banks);
LD nstructio execution time, 0 CJ1W-II101. 016 μs.
Current consumption(A): 5V,0.82(See note.); 24v, --.
Standards: UC1, N, L, CE.
CJ2H for high speed, high capacity.
The CJ2H Series is ideal for advannced machine CJ1W-II101.
automation needs such as those required in image.
processing inspection of electrical components and,
high speed sorting on conveyors.
