>> CJ1W-B7A22 | OMRON B7A Interface Unit CJ1W-B7A22
CJ1W-B7A22 | OMRON B7A Interface Unit CJ1W-B7A22
OMRON CJ1W-B7A22 Manual And Instructions
CJ1W-B7A22 datasheetPDF datasheet
CJ1W-B7A22 HardwareOPERATION MANUAL

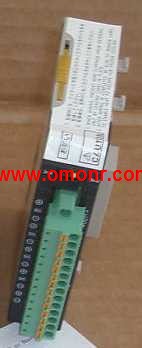

OMRON CJ1W-B7A22 Product information and technical parameters：
Brand: OMRON
Name: B7A Interface Unit
Model: CJ1W-B7A22
Unit type: CJ1 Basic I/O Units.
name: B7A Interface Units.
Specifications: I/O points, 32 inputs/outputs;
External connection, Removable terminal block.
No. of words allocated: 4 words.
Current consumption: 5V, 0.07A; 24V, --.
Standards: UC1, CE.
It transmits 16 points of I/O signals per,
word with a pair of cables.
Easy and minimized wiring effort,
The B7A Interface Unit and B7A Link Terminal,
can be used in the same way as a standard,
Basic I/O Unit and I/O Terminal without,
any need to worry about communications.
This characteristic reduces the wiring,
when using more than one relatively remote,
sensor or actuator.
...More relevant models >>>>
