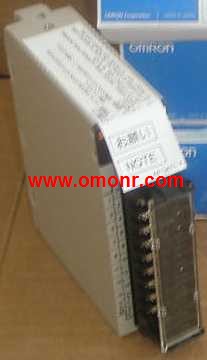

C200H-IA222 | OMRON AC Input Module C200H-IA222

OMRON C200H-IA222 Product information and technical parameters：
Brand: OMRON
Name: AC Input Module
Model: C200H-IA222
Model: C200H-IA222.
No. of inputs: 16 pts.
Input voltage: 200 to 240 VAC, +10%/–15%.
Input current: 10mA, 200VAC.
Isolation: Photo-coupler.
Indica-tor: LED.
External connec-tions: Remove-able termi-nal blocks.
Inputs percom-mon: 16 pts.
Internal currentcon-sump-tio

C200HS-CPU33-E CPU
High-Performance CIM Version, Built-in RS-232C Port
The C200HS-CPU31-E and C200HS-CPU33-E controller offers the same basic functionality as the C200HS-CPU01-E/CPU03 controllers.
This CPU may be used ineither SYSMAC NET and/or SYSMAC LINK communication systems.
The built-in RS-232C port supports the same communications as the C200HS-CPU21/CPU23 OMRON C200H-IA222. C200H A Backplane I/O Mounting Bracket For 5 Slots C200H-ATT53 C200H-IA222Model: C200HS-INT01.
Rated Input Voltage: 12 to 24 VDC +10%/–15%.
Input Impedance: 2 K.
Input Current: 10 mA typical (24 VDC).
ON Voltage: 10.2 VDC min.
OFF Voltage: 3.0 VDC max.
ON Response Time: 0.2 ms max.
OFF Response Time: 0.5 ms max.
No. of Circuits: ASCII Unit
This program runs independently from the ladder-diagram program in the PLC OMRON C200H-IA222.

Name: ASCII Module.
Model: C200H-ASC02.
ASCII/BASIC Module Utility Software: For AT-compatible computers. enables program development, downloading, uploading, etc.Power supply voltage: DC100V.
Note: operation with output contacts.
Power supply unit.
The power supply of the CPU rack is supplied by the power supply unit OMRON C200H-IA222.
The following power units are available for selection.
C200HW-PA204 (voltage: AC100-120V/AC200-240V)
C200HW-PA204S (voltage: AC100-120V/AC200-240V)
C200HW-PA204R (voltage: AC100-120V/AC200-240V)
C200HW-PD024 (voltage: DC24V)
In the past, PC connected to a measurement equipment or components must be given to the ASCII unit or BASIC unit to write a communication program.
Now, PC C200HX/HG/HE is installed on the communication protocol macro function,
Can be configured to these communications procedures through the PMCR instruction to the ladder program,
With this function system can be easily coonnected with a wide range of components C200H-IA222. UM: 31.2K words.
DM: 6K words.
EM: 6Kx3 banks(18K) words.
Instruction processing time (basic instructions): 0.1 µ.s min.
No. of I/O points: 1, 184 points.
Max. no.of con-necting Expansion I/OO Racks: 3 Racks C200H-IA222.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10.
RS-232C: NO.
