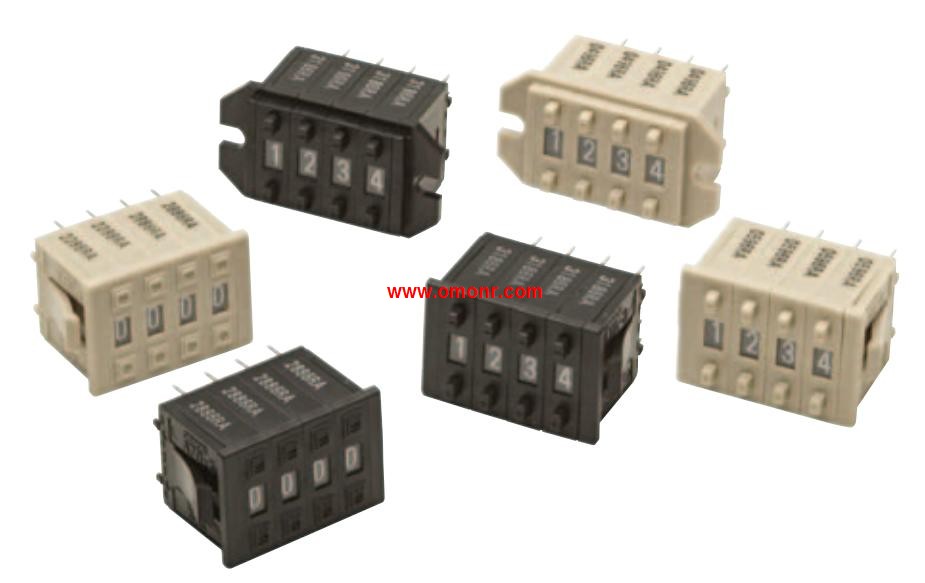

A7D-206 | OMRON Thumbwheel Switch A7D-206
OMRON A7D-206 Manual And Instructions
A7D-206 datasheetPDF datasheet
OMRON A7D-206 Product information and technical parameters：
Brand: OMRON
Name: Thumbwheel Switch
Model: A7D-206
Model: A7D.
Classification(See note 1.): Snap-in (front mounting).
Output code number: 06 (binary coded decimal).
Terminals: PCB terminals.
Color: Light gray.
Ultra-small, Low-cost, Push-operated.
Switches.
All-in-one design means fewer parts are required. This product,
delivers high reliability at a low cost.
Uses long-lasting resin springs to achieve a long mechanical,
durability expectancy of 30,000 operations.
Models with stoppers for restricting the setting range are available.
The series includes a complete range of pen-push models that,
prevent accidental operation.
