>> A22K-3ML-11 | OMRON Key-type Selector Switch A22K-3ML-11
A22K-3ML-11 | OMRON Key-type Selector Switch A22K-3ML-11
OMRON A22K-3ML-11 Manual And Instructions
A22K-3ML-11 datasheetPDF datasheet
OMRON A22K-3ML-11 Product information and technical parameters：
Brand: OMRON
Name: Key-type Selector Switch
Model: A22K-3ML-11

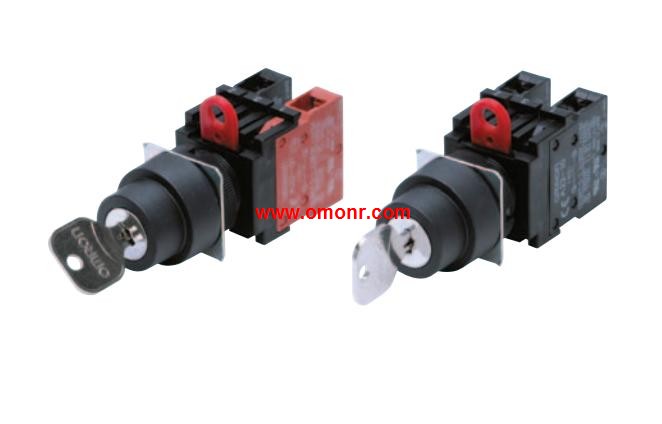

Appearance: Key-type Selector Switch A22K.
Number of notches: 3 notches.
Reset method: Manual.
Output: SPST-NO + SPST-NC.
Install in 22-dia. or 25-dia. Panel Cutout.
Lever for easily mounting and removing the Socket Unit.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type,
(round type) crimp terminals.
IP65 oil resistance.
