A22EL-M-24A-02 | OMRON Emergency Stop Switch A22EL-M-24A-02
OMRON A22EL-M-24A-02 Manual And Instructions
A22EL-M-24A-02 datasheetPDF datasheet
OMRON A22EL-M-24A-02 Product information and technical parameters：
Brand: OMRON
Name: Emergency Stop Switch
Model: A22EL-M-24A-02

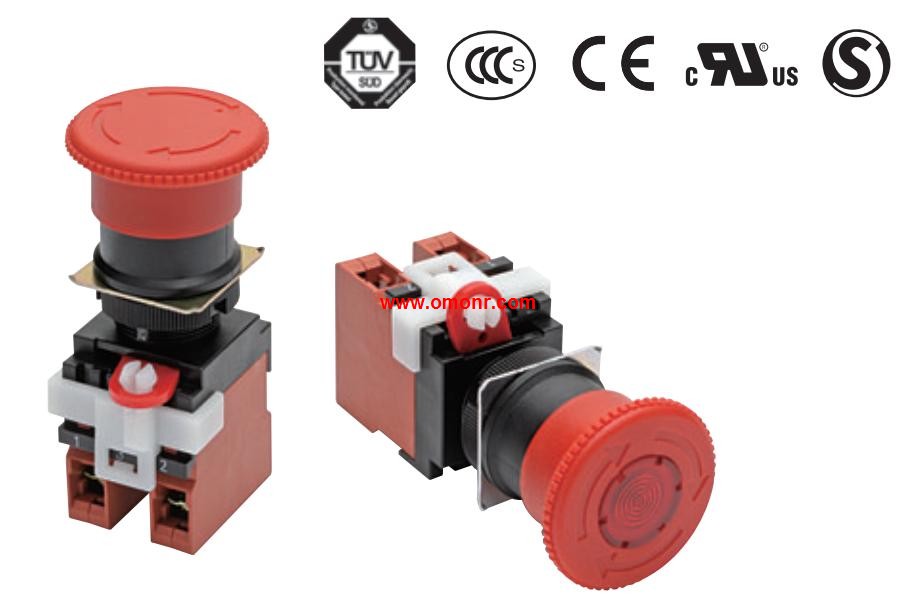

Appearance: 40-dia. head Push-lock Turn-reset without Voltage Reduction Unit A22E.
Operating: Contact configuration, 2NC (1NC + 1NC); Lighting, LED; Rated voltage, 24 VAC/VDC.
Push-lock turn-reset system.
Color of cap: Red.
Install in 22-dia. or 25-dia. Panel Cutout.
Direct opening mechanism to open the circuit when the contact welds.
Safety lock mechanism prevents operating errors.
Easy mounting and removal of Switch Blocks using a lever.
Mount three Switch Units in series to improve wiring efficiency,
(with non-lighted Switch Units, three Units can be mounted for,
multiple contacts).
Finger protection mechanism on Switch Unit provided as a,
standard feature.
Install using either round, or forked crimp terminals.
Oil-resistant to IP65 (non-lighted models)/IP65 (lighted models),
A lock plate is provided as a standard feature to ensure that the,
control box and switch are not easily separated.
...More relevant models >>>>
