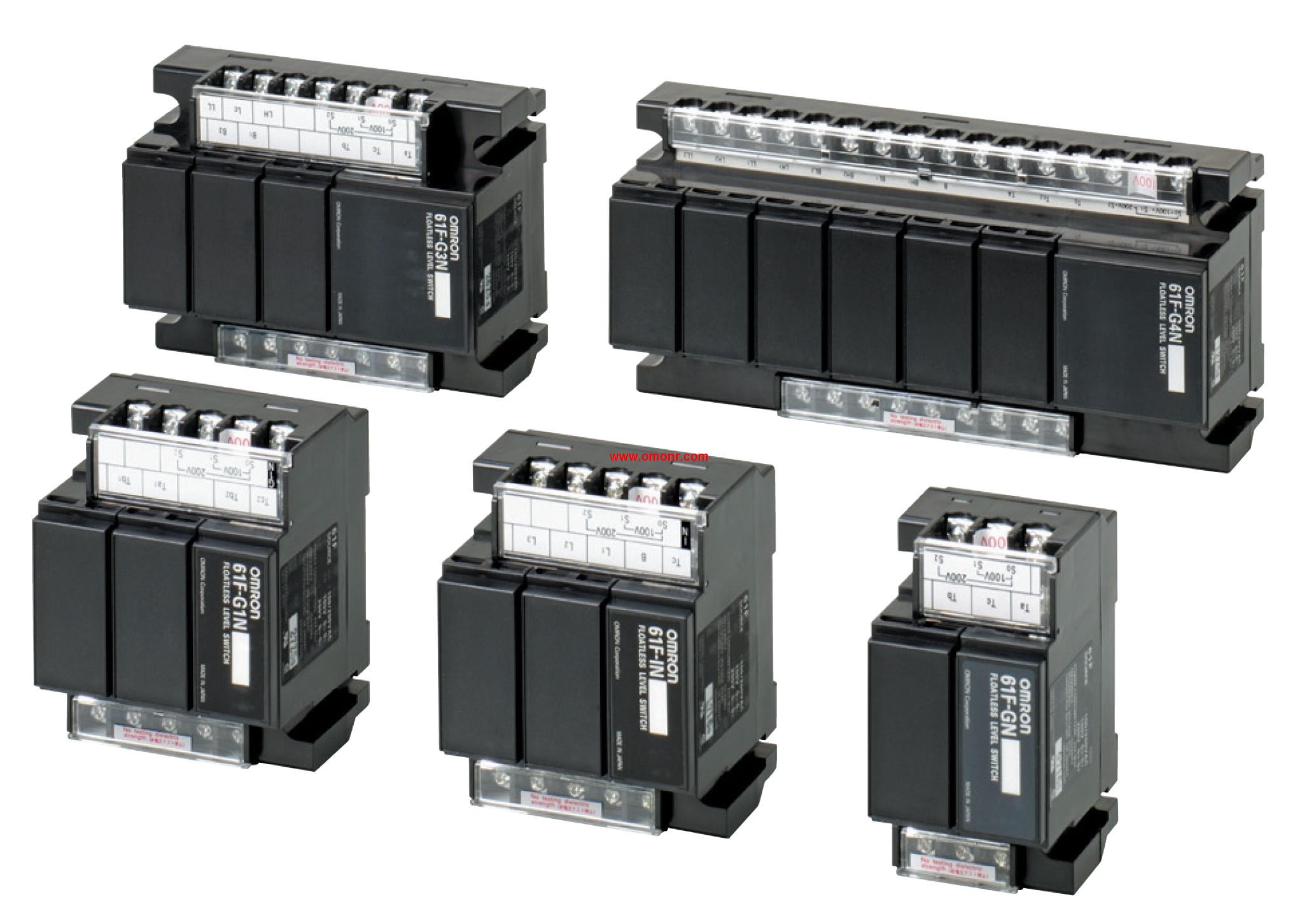

>> 61F-G4N | OMRON Compact no float switch 61F-G4N
61F-G4N | OMRON Compact no float switch 61F-G4N
OMRON 61F-G4N Manual And Instructions
61F-G4N datasheetPDF datasheet
61F-G4N Instruction Manual
OMRON 61F-G4N Product information and technical parameters：
Brand: OMRON
Name: Compact no float switch
Model: 61F-G4N
Improved update. Reduce standby power consumption, and then achieve lightweight.
Standby power consumption reduced to 85% of the company''s previous products. (61F-GN)
The quality is reduced to less than 85% of the company''s previous products. (61F-G3N, G4N)
With LED action display function, so that the state of action at a glance.
By improving the reliability of internal relays (tiny load 1mA DC5V), the PLC input becomes possible.
The electrode side terminals and other wiring terminals are separated, so the wiring operation is simple.
Installation method can choose the JEM agreement, DIN guide rail installation, screw installation in 3 ways.
G4N type, with a water tank and a water supply tank level display and prevent the function of automatic water idling caused by water shortage.
Package product name: 61F-G4N base * 1, 61F-11_ unit * 5.
Purpose: General use.
