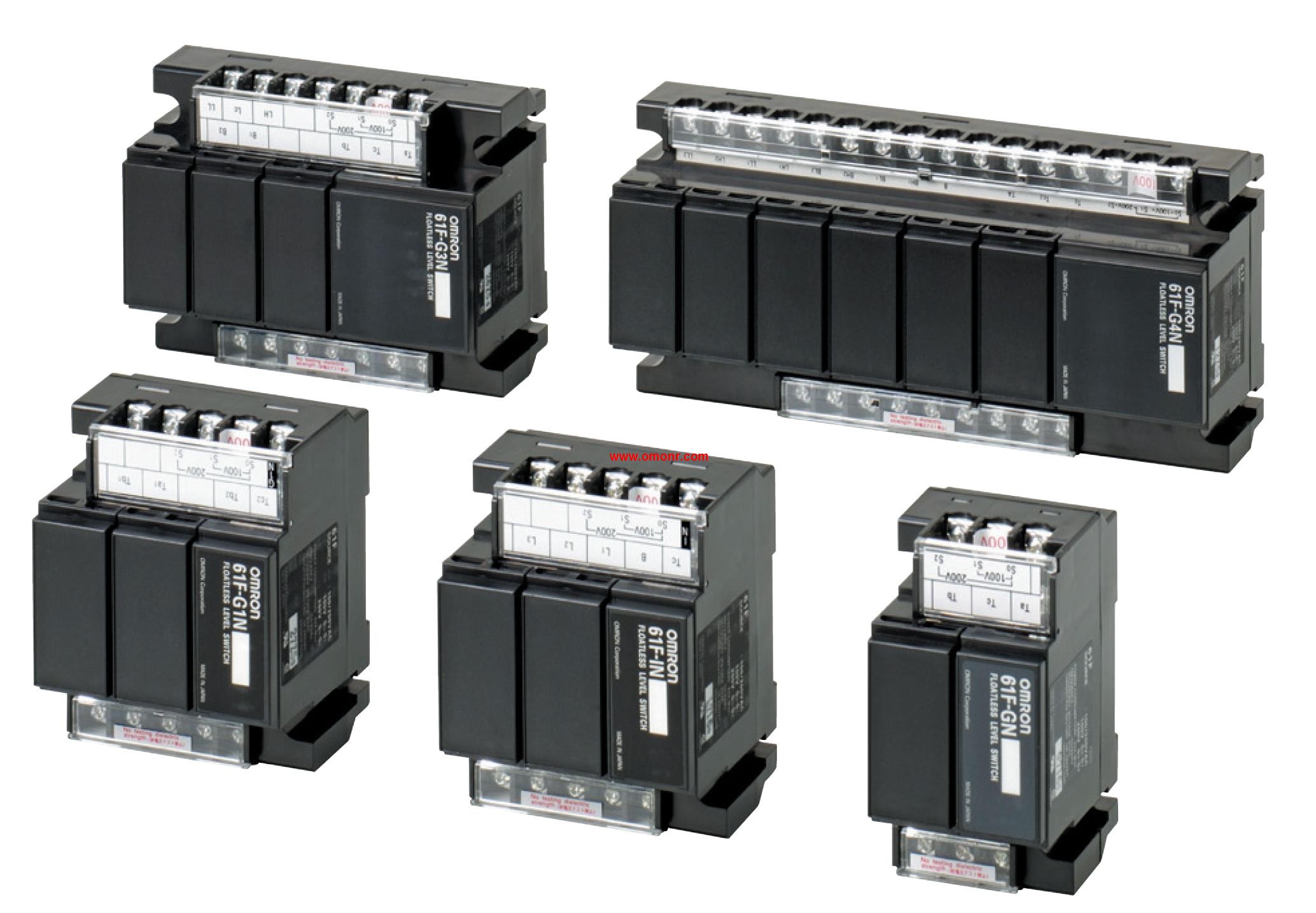

>> 61F-G1NH | OMRON Compact no float switch 61F-G1NH
61F-G1NH | OMRON Compact no float switch 61F-G1NH
OMRON 61F-G1NH Manual And Instructions
61F-G1NH datasheetPDF datasheet
61F-G1NH Instruction Manual
OMRON 61F-G1NH Product information and technical parameters：
Brand: OMRON
Name: Compact no float switch
Model: 61F-G1NH
Improved update. Reduce standby power consumption, and then achieve lightweight.
Standby power consumption reduced to 85% of the company''s previous products. (61F-GN)
The quality is reduced to less than 85% of the company''s previous products. (61F-G3N, G4N)
With LED action display function, so that the state of action at a glance.
By improving the reliability of internal relays (tiny load 1mA DC5V), the PLC input becomes possible.
The electrode side terminals and other wiring terminals are separated, so the wiring operation is simple.
Installation method can choose the JEM agreement, DIN guide rail installation, screw installation in 3 ways.
G1N type automatic water supply, both to prevent idling or water alarm function.
Package product name: 61F-G1N base * 1, 61F-11_ unit * 2.
Purpose: high sensitivity.
