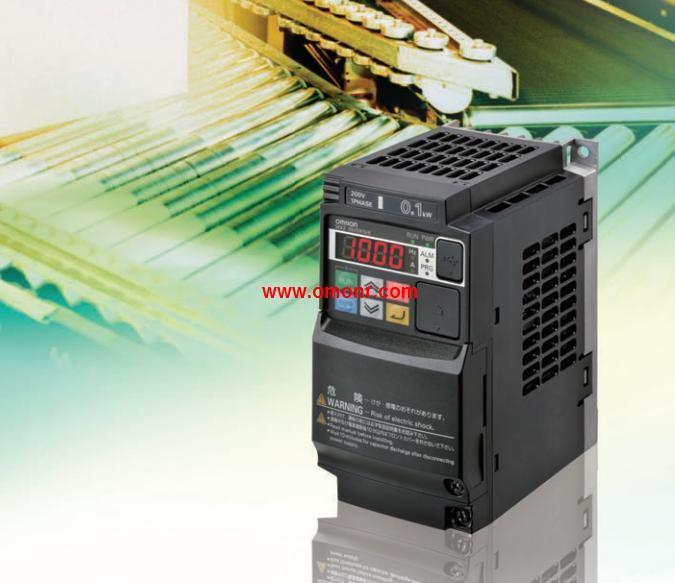

3G3MX2-A2055-ZV1 | OMRON Multi function small frequency converter 3G3MX2-A2055-ZV1

3G3MX2-A2055-ZV1 Introduce | 3G3MX2-A2055-ZV1 Catalog / Manual / Instructions / Software download

OMRON 3G3MX2-A2055-ZV1 Manual And Instructions
3G3MX2-A2055-ZV1 datasheetPDF datasheet

OMRON 3G3MX2-A2055-ZV1 Product information and technical parameters：
Brand: OMRON
Name: Multi function small frequency converter
Model: 3G3MX2-A2055-ZV1
Function name: 3 phase 200V.
Power: 5.5KW.
Rated output voltage: 3 phase, 200 ~ 240V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched).
Weight: 3.3KG.
Dimension (w * h) 260mm *:140.
Outline dimension (deep):155mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H.

Specification: three phase 400V.
Power: 0.75KW.
Maximum output voltage: three phase input voltage.
Rated voltage, frequency: three-phase power supply 380 ~ 50/60Hz, 480V.
Cooling way: natural wind cooling.
Weight: 1.2kg.
Open loop vector control mode of low speed and high torque, rich control function and convenient distribution management network function,
Set in one of the inverter --3G3MZ OMRON 3G3MX2-A2055-ZV1 3G3MX2-A2055-ZV1
3G3MZ series inverter for the application of frequency control and development.
Humanized design and advanced management technology, as well as OMRON a simple style of modeling, feature rich style,
Combined with the latest technical needs of users, so that it has a noble lineage and the most close to the market elements OMRON 3G3MX2-A2055-ZV1.
Covers the special features of the fan pump class, open loop vector function,
Built in noise filter and a variety of network bus,
3G3MZ will be your most economical and the most perfect choice. Function name: 3 phase 400V.
Power: 0.75KW.
Rated output voltage: 3 phase, 380 ~ 480V (the output voltage can not exceed the input voltage).
Built in brake unit (brake resistance needs to be matched) OMRON 3G3MX2-A2055-ZV1.
Weight: 1.6KG.
Dimension (w * h) 128mm *:108.
Outline dimension (deep):170.5mm.
Mechanical automation concept.
Positioning function.
The use of options.
(EtherCAT, CompoNet and DeviceNet) to realize the field bus communication.
Driver programming function.
Current vector control.
High starting torque: 0.5Hz up to 200%.
Safety features, in compliance with ISO13849-1:2008 EN (Cat.3/PLd) and IEC60204-1 stop level 0 standard.
Frequency output up to 580H. Power supply: 3 phase 3 line rated voltage 500V AC.
Rated current: 6A.
Weight: 0.7KG.
Used to reduce the nnoise generated by the inverter 3G3MX2-A2055-ZV1.
Try to be close to the transducer for connection. Inverter input power: 3 phase / single phase AC200V.
Weight: 1.6KG.
Standard applicable line diameter: 2 square mm or more.
Used to suppress harmonicc currents generated by a transducer 3G3MX2-A2055-ZV1.
The effect of harmonic current suppression is better than that of AC reactor,
And it can be used with AC reactor.
