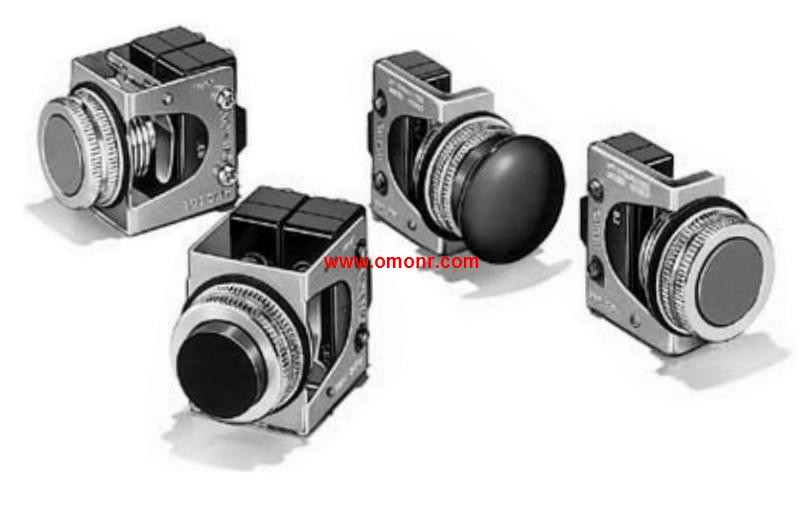

>> 2ZAP-1A | OMRON Pushbutton Switch 2ZAP-1A
2ZAP-1A | OMRON Pushbutton Switch 2ZAP-1A
OMRON 2ZAP-1A Manual And Instructions
2ZAP-1A datasheetPDF datasheet
OMRON 2ZAP-1A Product information and technical parameters：
Brand: OMRON
Name: Pushbutton Switch
Model: 2ZAP-1A
Classification: Momentary operation.
Shape of Operation Unit: 36 dia. 25 dia.
Output: 2.
Operation Unit color: Blue (-A).
Long Service Life with Built-in Z-series.
Basic Switch.
Using a Basic Switch enables direct switching of large-capacity loads.
Shock-absorbing construction of Operation Unit protects the Switch.
Drip-proof Pushbutton construction enables use in locations subject to,
splashing water and oil and scattering dust.
Pushbuttons are available in three shapes and six colors.
