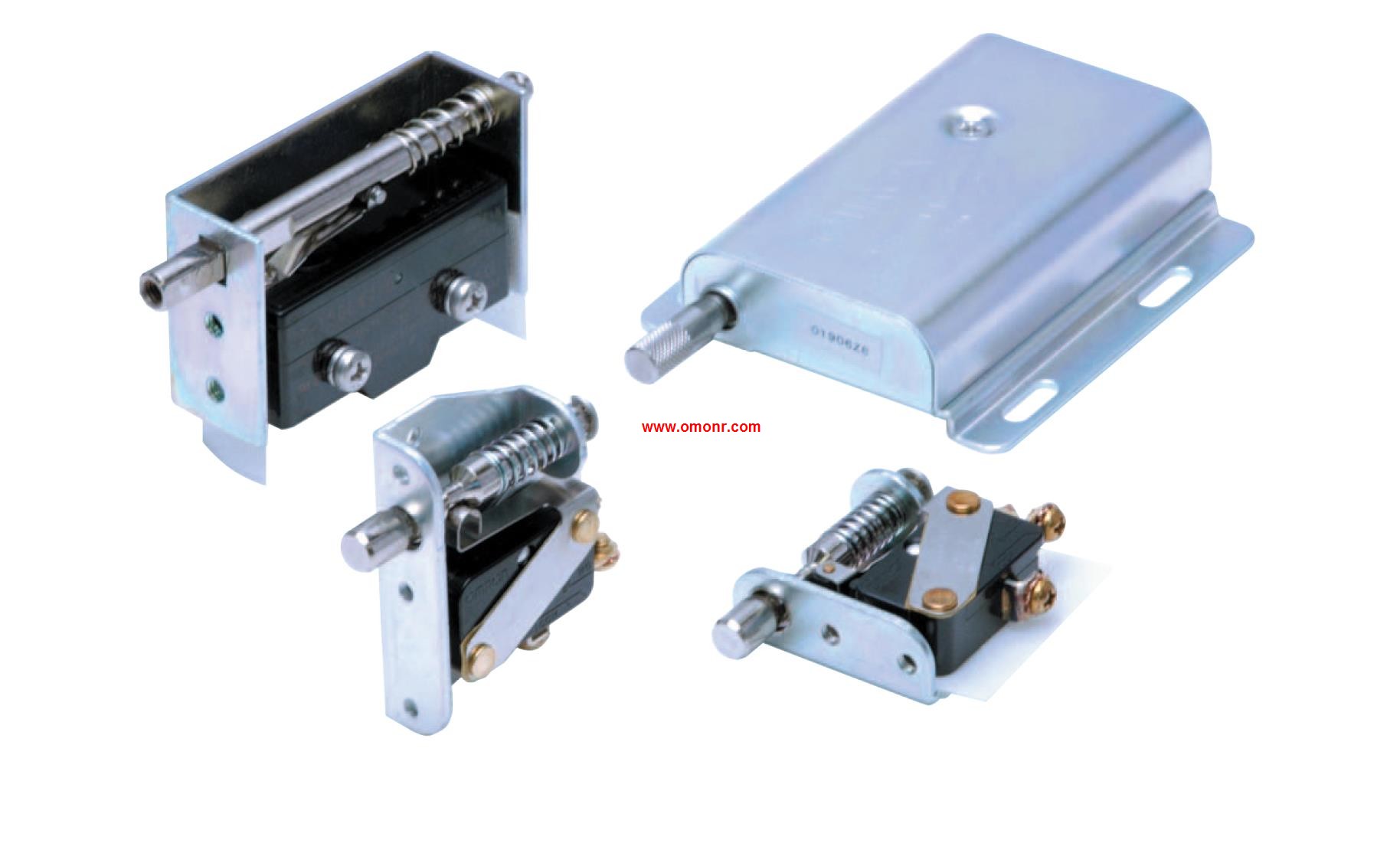

OMRON 1VAP2-1 Product information and technical parameters：
Brand: OMRON
Name: Door Switches
Model: 1VAP2-1
Operation: Push operation, Self-reset; Pull operation, Hold.
Built-in Switch: V-15-1B6.
Door Switches with Built-in Basic.
Switches for Long Life.
Installation in electrical facilities, equipment doors, and other,
openings helps ensure safety by reliably preventing accidents.
A Basic Switch if built in to provide a large switching capacity,
and long service life.
